Includes

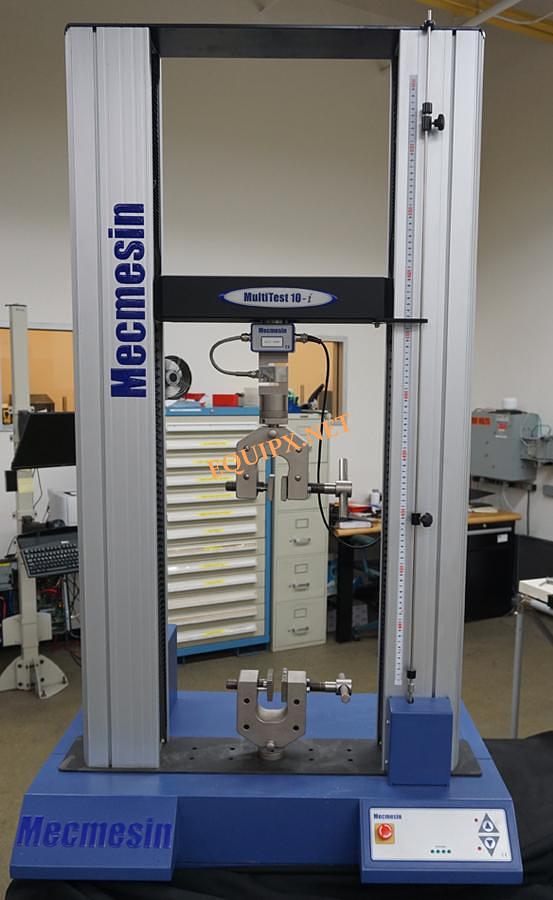

10kN dual column test frame

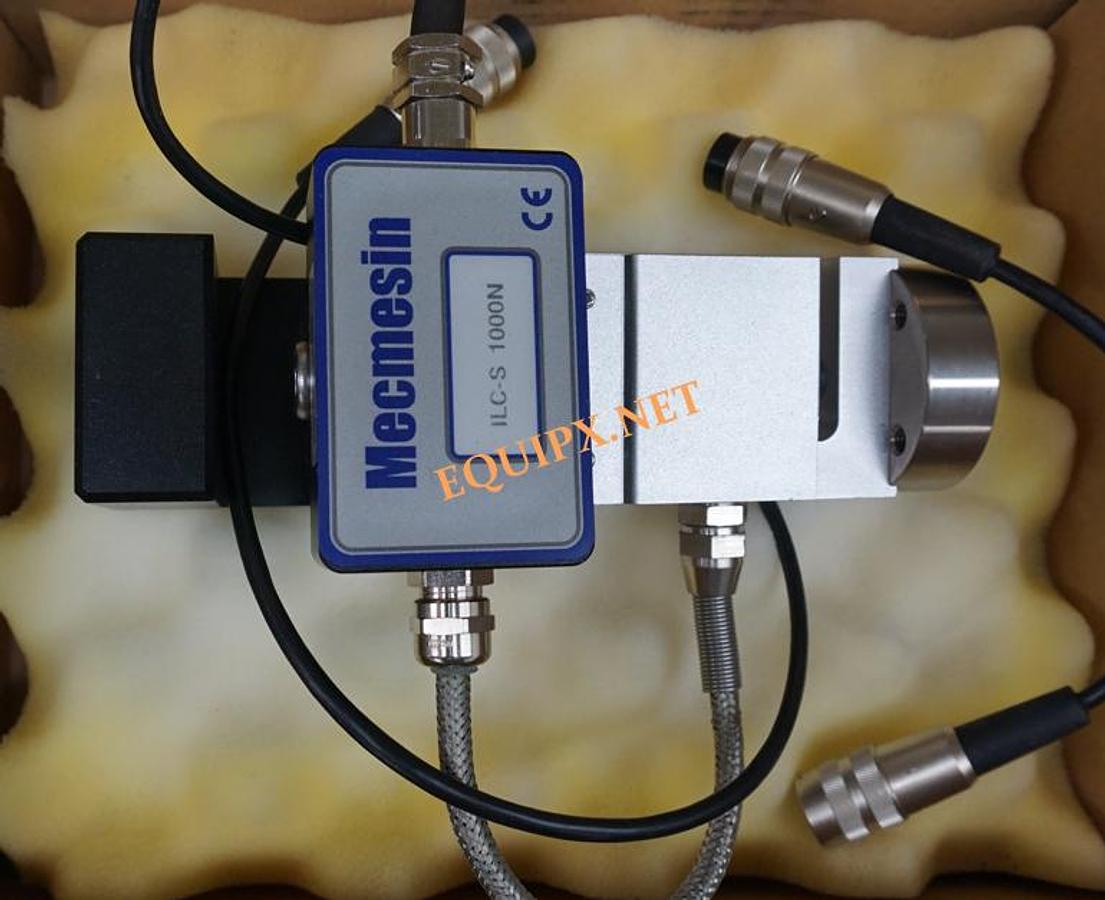

1000N and 10kN load cells

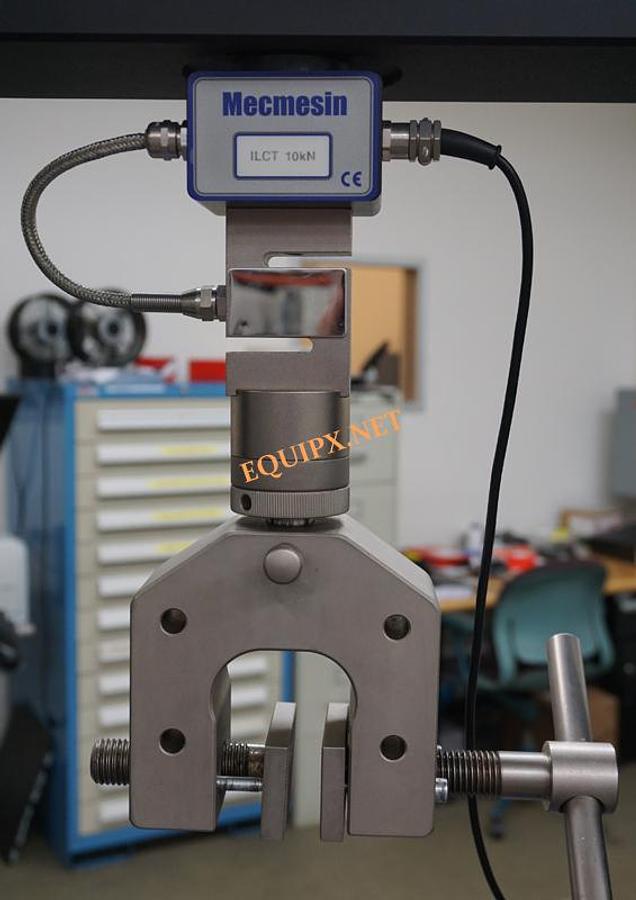

1 pair Vice grips
PC with Emperor software preloaded

Optional items in photos are additional- please inquire

Overview

The MultiTest-i tensile & compression tester is controlled by Emperor software hosted on your own computer.

The twin-column MultiTest-i features dual-columns containing twin-ballscrews, which drive a solid crosshead to which a loadcell is attached. This ensures excellent rigidity and strength whilst their intuitive controls make them easy to use, even for novice operators.

Protective bellows guarantee that dust and small objects cannot become trapped inside the machine. For operator safety, a range of protective shields/enclosures is available in situations where specimens may shatter or create projectiles upon failure.

Designed to apply tensile and compressive forces from 2N right up to a capacity of 10 kN their high-quality construction, manufactured under ISO 9001 quality standards, ensures the ultimate in repeatable testing.

When seeking to precisely measure forces across a wide range it is often necessary to use multiple loadcells. The dovetailed crosshead design of the MultiTest ensures the operator minimises set-up time by quickly and easily sliding on a new loadcell, which is automatically recognised by the software. For higher load applications the loadcells are fitted with a simple bolt connection.

The base plate of the MultiTest-i and MultiTest-xt is pre-drilled with threaded holes to directly accept a wide range of grips and fixtures. It also accepts the quick-change (QC) adaptors which speed up the interchange of grips when you need to perform a variety of different tests.

Make use of your own PC to run its software and take advantage of its versatility to make it your ideal choice for tensile & compressive testing up to 50kN.

Loadcells

The ILC range of interchangeable loadcells is specially adapted to the MultiTest-i series. They plug into the frame and their calibration characteristics are immediately recognised by the tester without any input from the operator.

Eighteen different sensors, all measuring from zero, are available to cover the range from 2 N up to 50 kN. This ensures that you have the optimum selection to meet all your tension and compression testing needs. Measurement accuracy is an outstanding ±0.1% or ±0.2% of the sensor capacity.

Each ILC sensor is delivered as standard with its own calibration certificate traceable to national standards.

Software

Emperor software is at the heart of the MultiTest-i and MultiTest-xt test systems. It runs on any Windows computer and controls the motor of the test frame whilst collecting data at an impressive 1,000 Hz from the ILC loadcell and displacement encoder of the frame.

Step-by-step test routines can be quickly and easily created according to the exact requirements of your testing procedures. The most commonly used test routines can then be simply selected by the operator using their 'favourites' button or from a standard drop-down list.

By plotting measurement data in real-time on a graph the operator can identify exactly how the test specimen is performing. Preset calculations are used to analyse the data to determine whether the specimen has met the pass/fail criteria of the quality-control specifications.

At the end of the test, the powerful reporting module within Emperor™ allows the operator to issue a test report as a PDF. Additionally, the data can be exported to Excel or to the network for further analysis by a Statistical Process Control (SPC) package.

Additional accessories available:

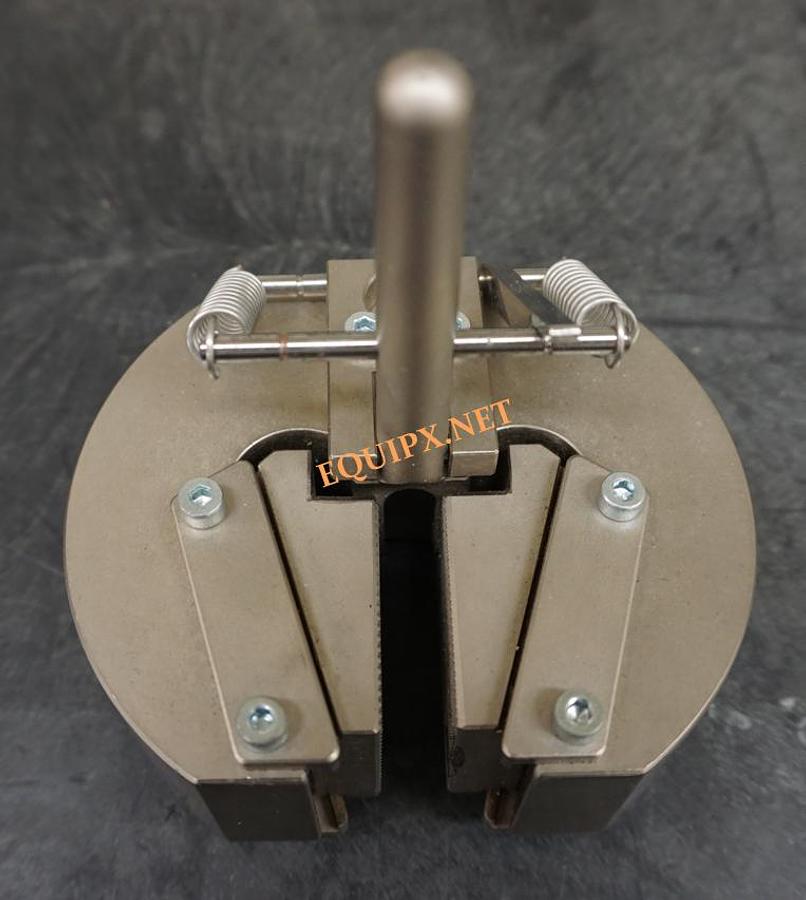

MecS622 lever action wedge grip $1400 (1 available)

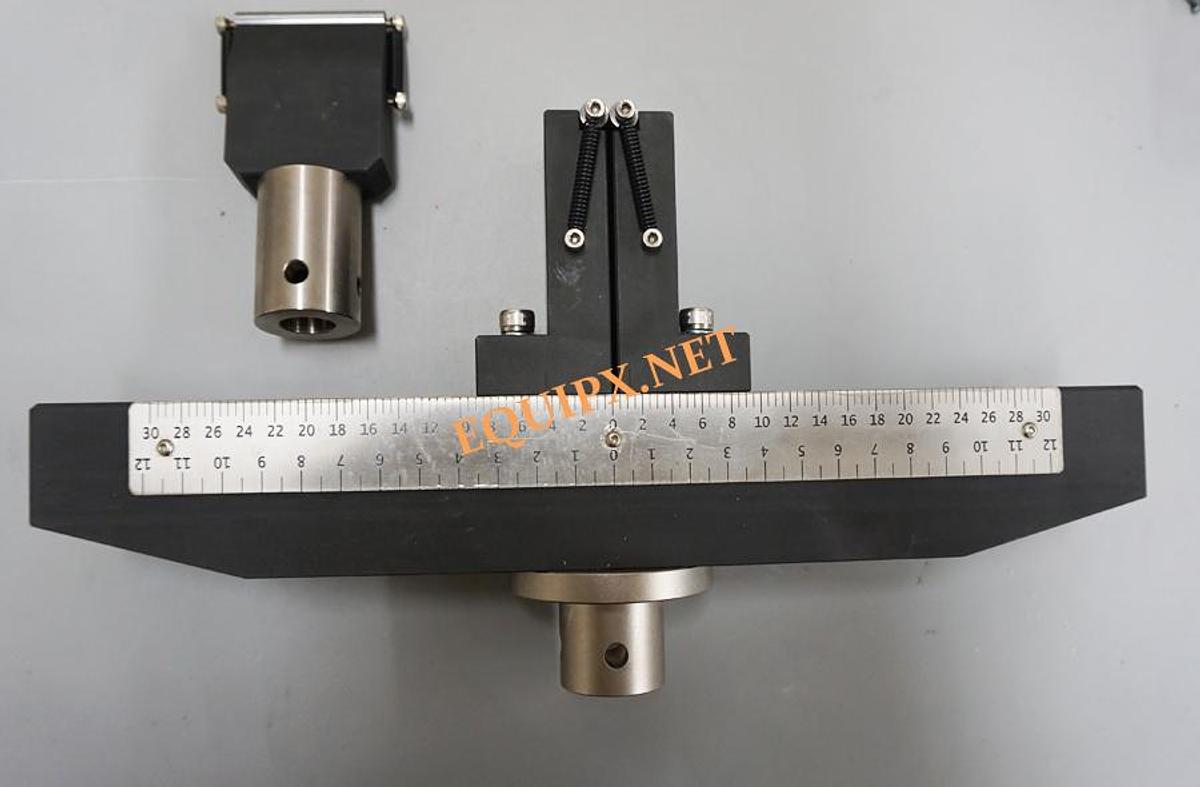

432-266 3 point bend fixture $2900
432-271 large bollard grips $650 each

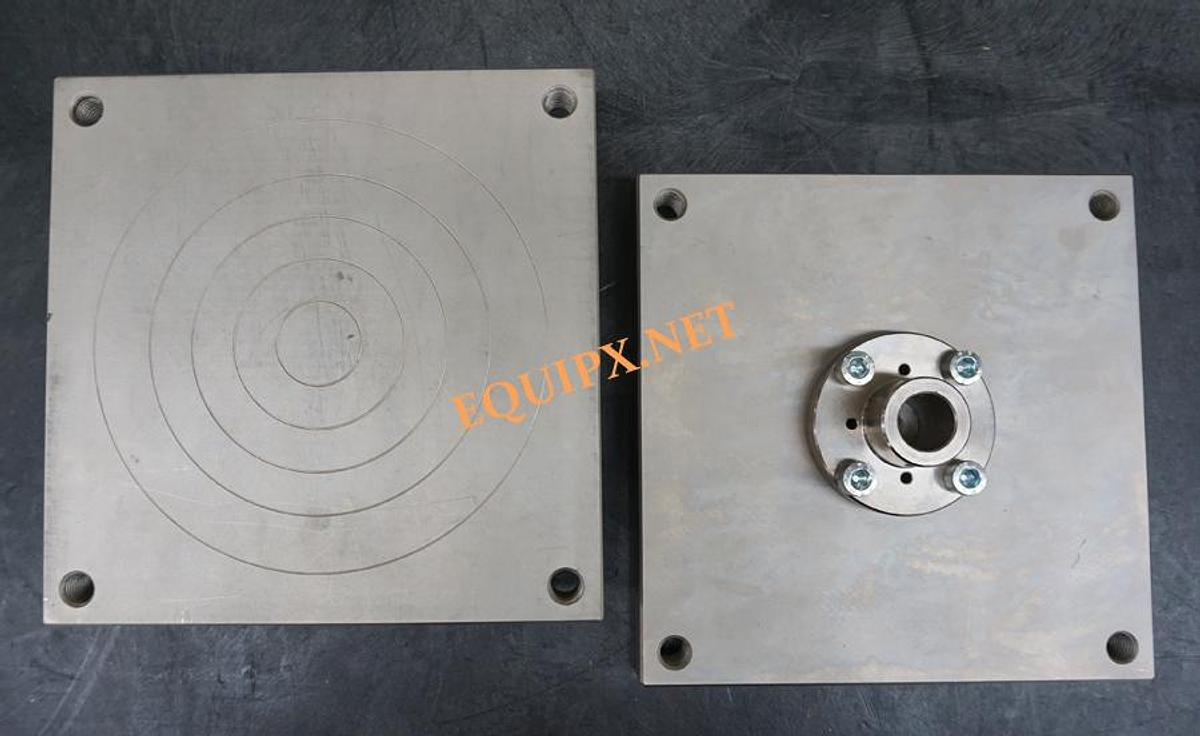

36-196 196x196mm steel compression plates $890. each

Specifications

Stock Number	5036
