NRTL certified to UL/CSA standards

Circulation chiller with integrated heater

Colored TFT display for simultaneous indication of actual and set values and graphic illustration of the temperature profile

Clear text menu navigation

Fully electronic continuous controller with PID action

Electronic level indication and low-level alarm

Powerful pressure pump

Ethernet (RJ45), USB interface and alarm contact as standard

Slots for interface modules at the backside of the device

Upgradeable with two interface modules (analogue module, contact module, RS 232/485 module, Profibus)

Upgradeable with Pt 100/LiBus module for external control and remote control via Command console

Integrated programmer with max. 150 segments, splitable in 5 programs

Adjustable bypass for pressure limiting

Filler opening on top, drain tap on the backside

SmartCool system for energy-saving digital cooling management including compressor on-off control

Condenser cooling Air

Utilizes traditional refrigerants (HFCs)

Cold-plug socket (C20) for connecting a power cord

Product	LAUDA VC 2000 NRTL
Voltage	200-230V; 50/60Hz
Working temperature max. °C	80
Working temperature min. °C	-20
Temperature stability ±K	0.05
Heat discharge cooling unit	Air
Heater power max. kW	1.90 kW @ 200 V / 2,50 kW @ 230 V
Cooling output at 20 °C kW	2.15 kW @ 50 Hz / 2.20 kW @ 60 Hz
Pump pressure max. bar	3.1 bar @ 50 Hz / 4.1 bar @ 60 Hz
Pump flow max. L/min	37 L/min @ 50 Hz / 44 L/min @ 60 Hz
Pump connection thread mm	G 3/4
Bath volume min. L	9.0
Bath volume L	14.0
Dimensions (WxDxH) mm	450x550x825
Noise level dB (A)	60
Weight kg	72.0kg / 159lbs
Compliance	CE, NRTL certified to UL/CSA standards

Stock Number	5093
Sort	0

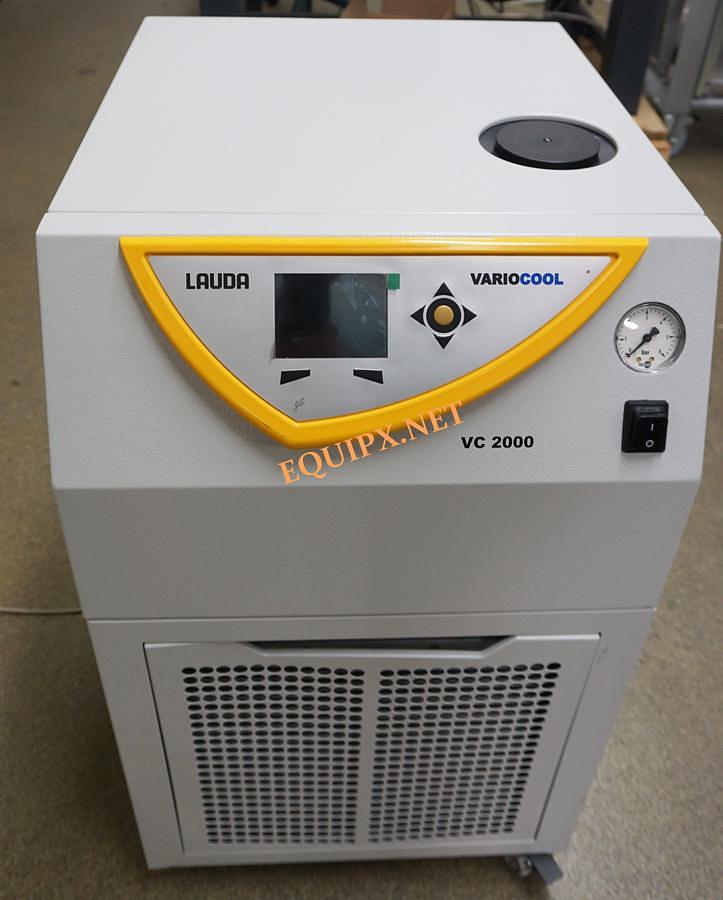

Brand NEW Lauda VC2000 chiller -20C to +80C, 200-230VAC 50/60hz
