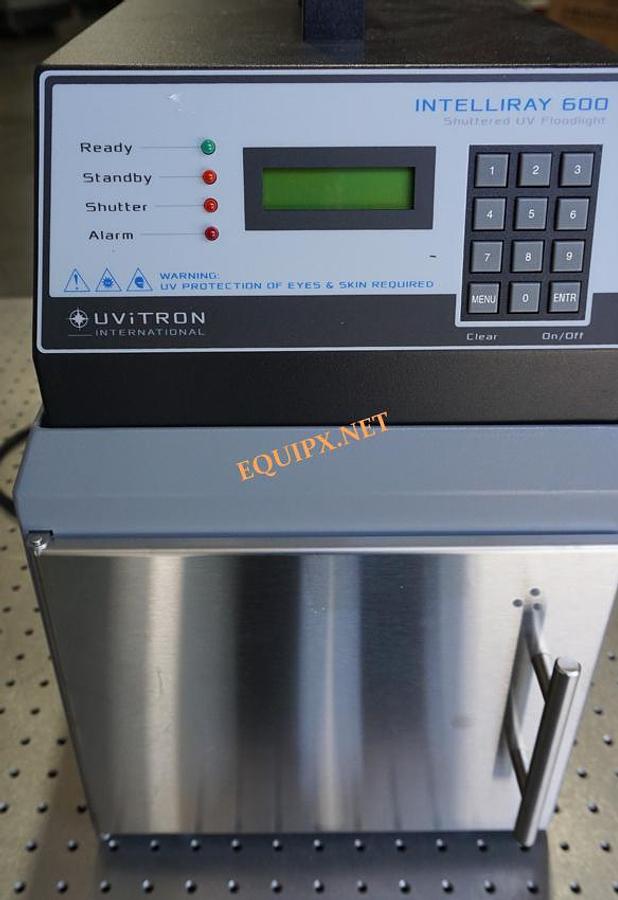

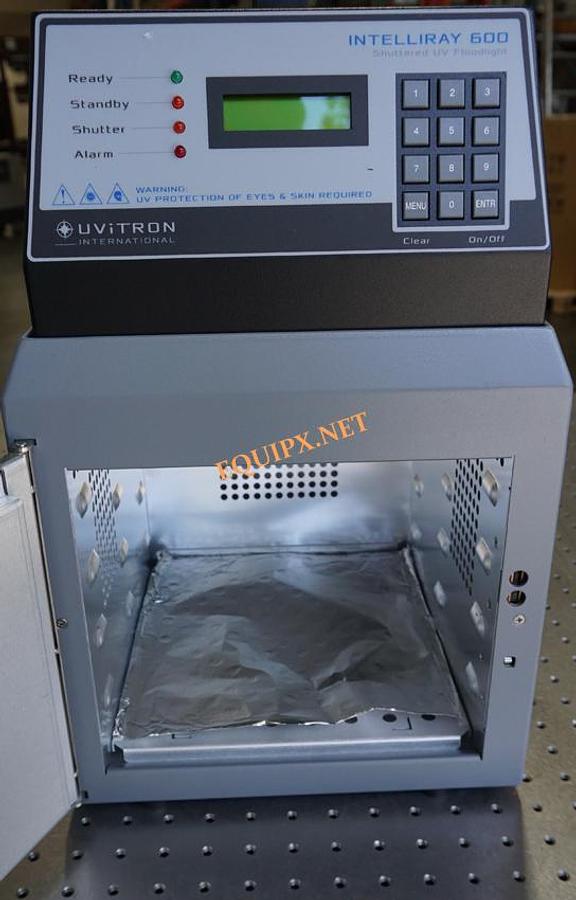

Uvitron IntelliRay 600 UV Flood cure sysem with 600W lamp including curing chamber

Features:
- Microprocessor control of time & intensity
- Remote control via PC or PLC
- 175 mW/cm2 intensity @ 3"
- 8" x 6" UV cure area
- Solid state - constant power
- UV cure chamber

About IntelliRay 600 UV Flood Cure System
IntelliRay 600 is a compact microprocessor controlled 600 Watt UV flood curing system, which can be easily mounted on the optional Rayven benchtop curing chamber, or anywhere on a factory floor, with virtually no cabling or remote power boxes required. Just mount the head, connect the AC line cord, and start timed exposure curing! The IntelliRay 600 LCD display and digital keypad make simple work of programming and monitoring UV curing operations. The long life arc lamp and parabolic reflector illuminate an 8 x 6 inch curing area with evenly distributed UV light. The head features a convenient carrying handle and sliding height adjustment bracket.

Versatile System Timers IntelliRay 600 UV curing time is controlled by a 1 to 9999 second or hour exposure timer that actuates the shutter. The exposure timer also has a user controlled manual mode, and a mode for use in long exposure applications, such as artificial aging or solar panel testing.

Lamp Intensity Control
IntelliRay 600 has a user adjustable intensity level. This feature provides the flexibility of choosing appropriate curing intensity for sensitive materials. Time, intensity as well as all other settings can be password protected.

Standby Mode
The unit automatically reduces lamp power when the shutter is closed. This reduces excessive heat and therefore increases life of system components, without the need to power down.

Status Indicators
Four front panel LEDs are provided: Lamp ready, system in standby mode, shutter open, and system alarm.

Remote Control /Logic Interaface
IntelliRay 600 can be remotely monitored and controlled using machine controllers or PLCs, and can also be controlled using a computer and optional Windows™ compatible graphical interface software.

An optional shutter control foot pedal is available for applications requiring hands-free operation. The pedal can be used in conjunction with the system's exposure timer, or in a manual mode in which the shutter remains open as long as the pedal is pressed.

Best in Class Lamp Life
The IntelliRay 600 system now has enhanced lamp life which rivals even microwave and LED systems, significantly lowering operating and maintenance costs.
