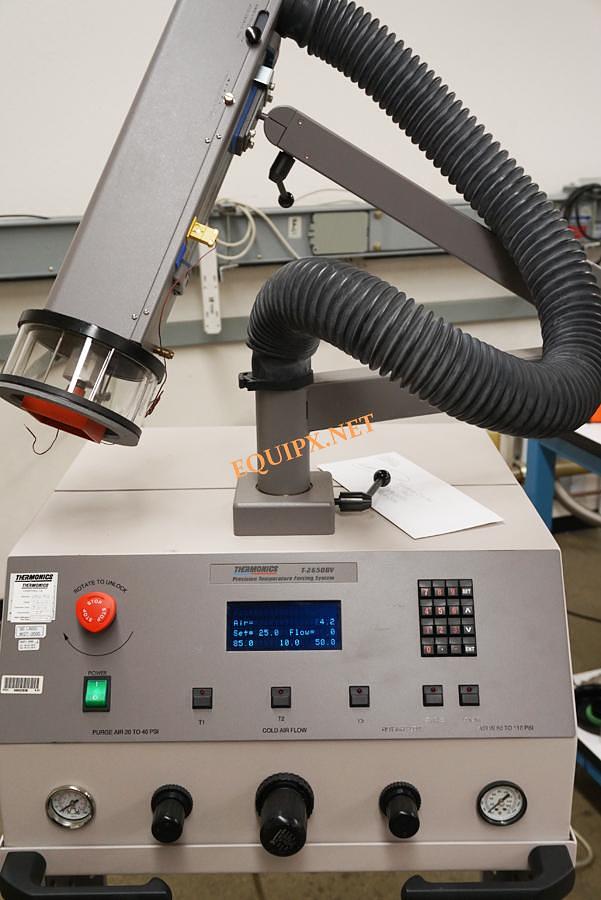

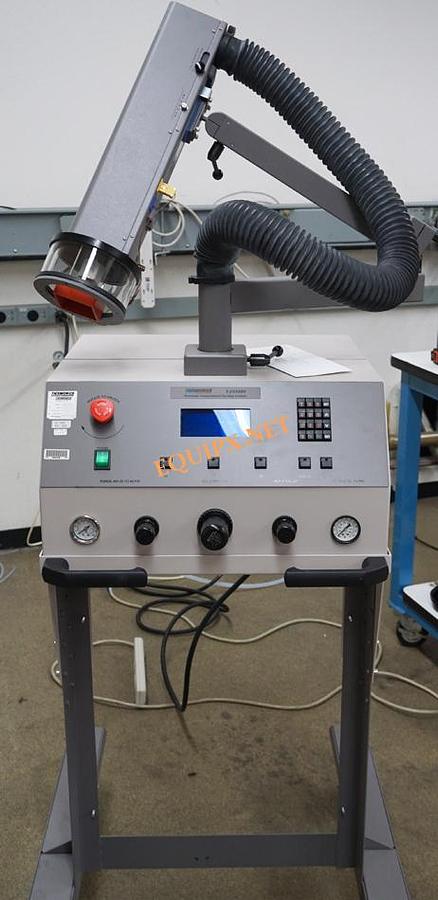

Thermonics T2650BV Temperature forcing system -60 to 200C, 7CFM
Thermonics T2650BV Temperature forcing system -60 to 200C, 7CFM
$7,450 (USD)
or
Call (408) 209-9278
Description
The T-2650BV Precision Temperature Forcing System (PTFS) provides a unique and cost-effective approach to testing devices over a wide (-60C to 200C) temperature range.
This compact system is ideal for “benchtop” applications and includes an integrated thermal test head and support arm.
This advanced PTFS is also energy efficient.
Compared to full size roll-around systems, the T-2650BV dissipates 50% less power for most applications.
For modest temperature range applications (-10C to 150C) only 7 SCFM (198 liters/min.) of compressed air flow is required.
A full array of operational features is provided within the software of the T-2650BV. These include IEEE-488.2 (GPIB) remote control, temperature ramping, temperature cycling and device under test (DUT) temperature sense capability with an external K or T type thermocouple.
Temperature resolution is 0.1C and accuracy is +/- 1.0C
The T-2650BV fulfills the need for an effective PTFS in a setting where floor space is limited or portability is required. The system is a true bench-top sized unit that retains many of the salient features of our full-sized units.
Common applications for use of the system include research and development, product engineering, quality assurance, or production test.
The optimum test candidates for this system are single parts or passive devices if parallel testing is implemented.

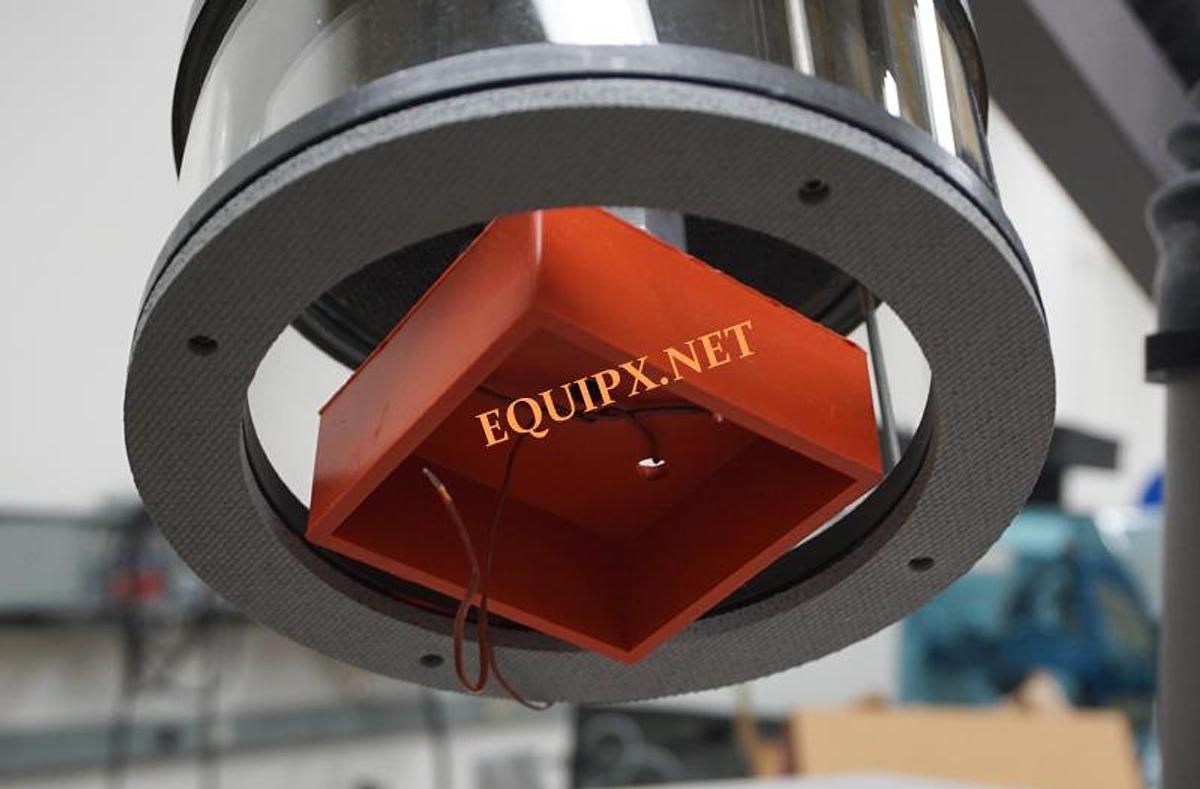

Integrated Support Arm and Thermal Test Head Provides easy positioning and precise, repeatable placement of the thermal test head over the device under test (DUT). Assures superior integration of the DUT with the air stream for effective temperature control.
Small Footprint Perfect for tight work spaces.
Easily portable relative to a standard unit. Unit measures 21 inches by 20.75 inches. (53.3 cm X 52.7 cm)
serial no. 0904-326
Calibrated at -40C and +125C
This compact system is ideal for “benchtop” applications and includes an integrated thermal test head and support arm.
This advanced PTFS is also energy efficient.
Compared to full size roll-around systems, the T-2650BV dissipates 50% less power for most applications.
For modest temperature range applications (-10C to 150C) only 7 SCFM (198 liters/min.) of compressed air flow is required.
A full array of operational features is provided within the software of the T-2650BV. These include IEEE-488.2 (GPIB) remote control, temperature ramping, temperature cycling and device under test (DUT) temperature sense capability with an external K or T type thermocouple.
Temperature resolution is 0.1C and accuracy is +/- 1.0C
The T-2650BV fulfills the need for an effective PTFS in a setting where floor space is limited or portability is required. The system is a true bench-top sized unit that retains many of the salient features of our full-sized units.
Common applications for use of the system include research and development, product engineering, quality assurance, or production test.
The optimum test candidates for this system are single parts or passive devices if parallel testing is implemented.
Integrated Support Arm and Thermal Test Head Provides easy positioning and precise, repeatable placement of the thermal test head over the device under test (DUT). Assures superior integration of the DUT with the air stream for effective temperature control.
Small Footprint Perfect for tight work spaces.
Easily portable relative to a standard unit. Unit measures 21 inches by 20.75 inches. (53.3 cm X 52.7 cm)
serial no. 0904-326
Calibrated at -40C and +125C
Specifications
| Stock Number | 5135 |
| Sort | 0 |
