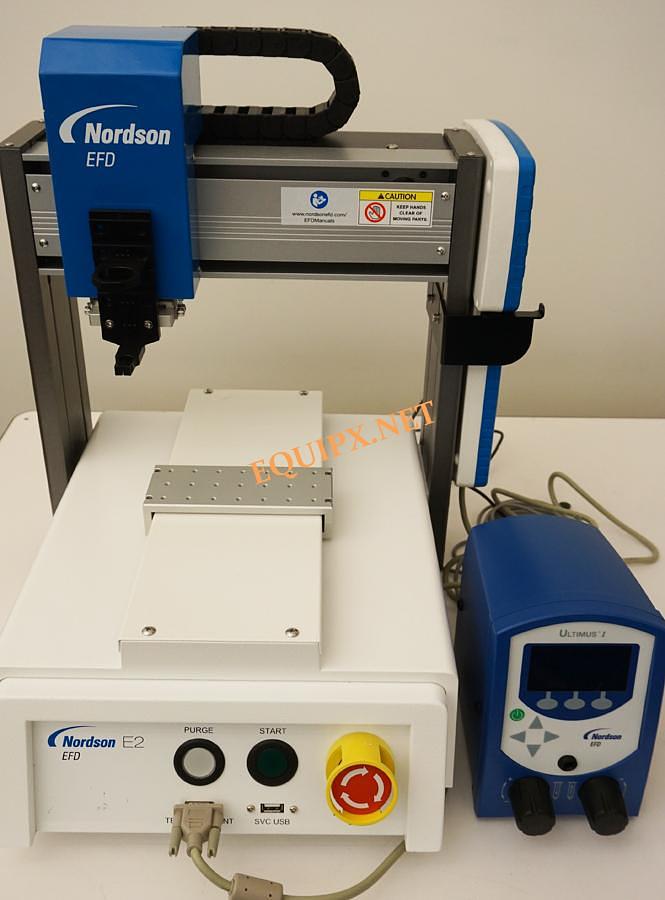

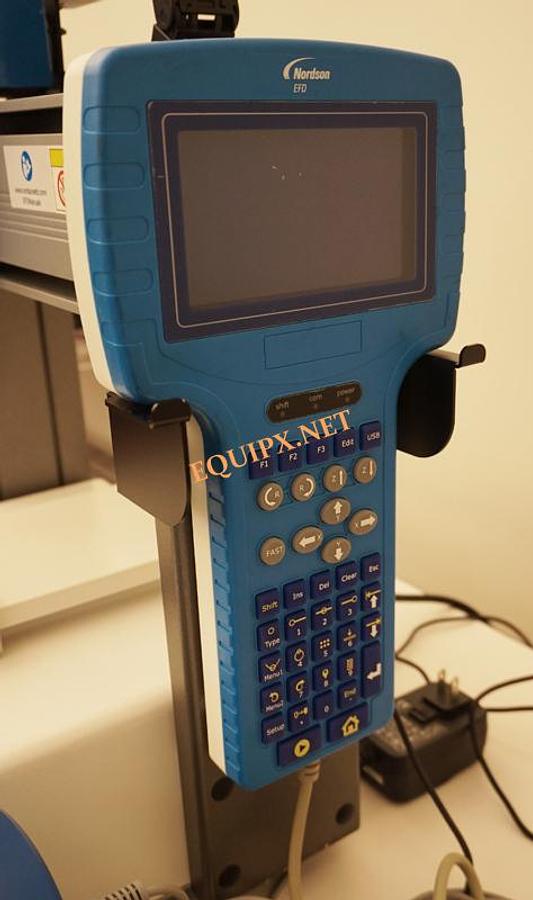

Nordson EFD E2 3-axis Automated dispensing system with Ultimus I Fluid Dispenser and teach pendant
Nordson EFD E2 3-axis Automated dispensing system with Ultimus I Fluid Dispenser and teach pendant
$7,250 (USD)
or
Call (408) 209-9278
Description
Number of Axes | 3 axis |
|---|---|
Programming | Teach Pendant |
Maximum working area (X/Y/Z) | 200/200/50 mm (8"x8"x2") |
Workpiece Payload | 5 kg |
Tool Payload | 3 kg |
Dimensions | 370w x 510h x 414d mm |
Maximum speed | 500/250 mm/s |
Drive system | 3-phase micro stepping motor |
Memory capacity | 1-99 programs, 1-9.999 points per program |
External inputs/outputs | 8 inputs / 8 outputs |
Repeatability | ±0.008 mm / axis |
Weight (kg) | 22 kg |
Specifications
| Stock Number | 5147 |
| Sort | 0 |
