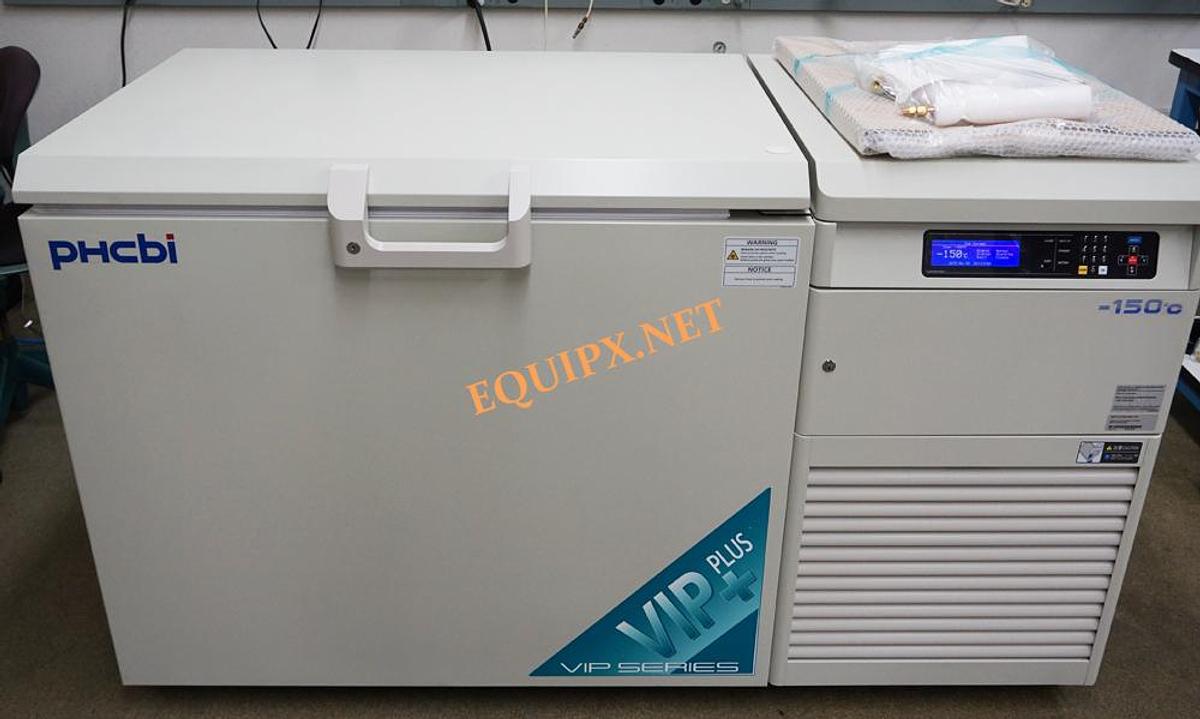

PHCbi MDFC-2156-VANC-PA -150C Cryo-Freezer- NEW UNUSED 220vac (2022)
PHCbi MDFC-2156-VANC-PA -150C Cryo-Freezer- NEW UNUSED 220vac (2022)
$29,500 (USD)
Description

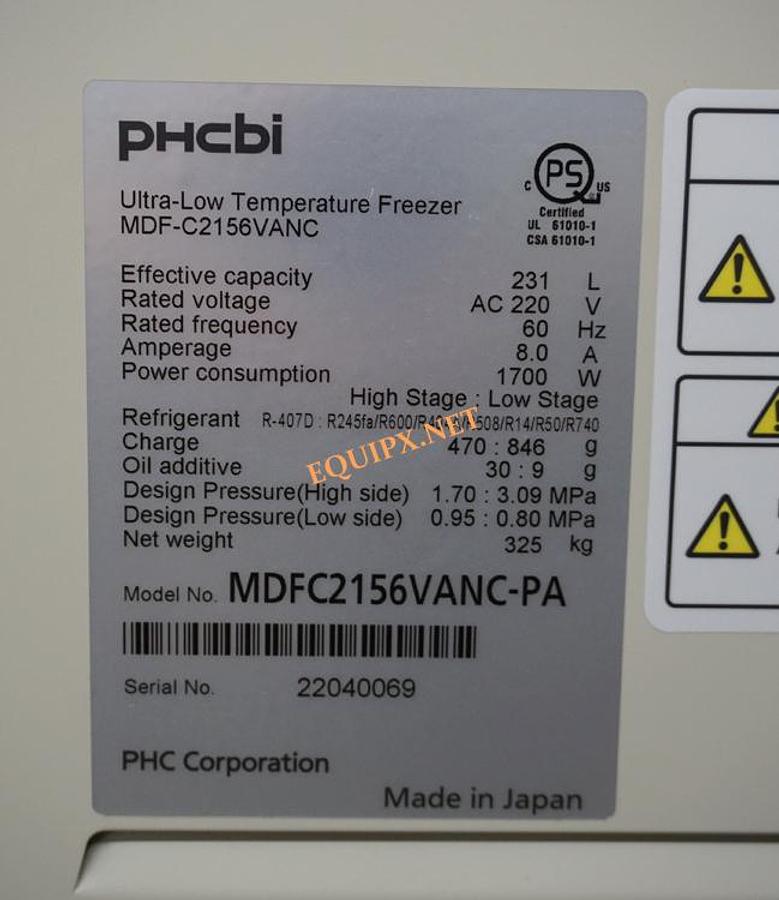

Manufacture date 4-2022
Achieve -150C without LN2
| EXTERNAL DIMENSIONS | 68.1" W x 30.1" D x 39.8" H (1730 x 765 x 1010 mm) |
|---|---|
| INTERNAL DIMENSIONS | 29.9" W x 19.5" D x 24.2" H (760 x 495 x 615 mm) |
| EFFECTIVE CAPACITY | 8.2 cu.ft. (231 L) |
| INSULATION | Rigid foamed-in-place and VIP Plus vacuum insulation panels |
| ACCESS PORT | 1: side table, Inner diameter 1.5 in (40 mm) |
| NET WEIGHT | 716.5 lbs (325 kg) |
| COMPRESSOR | (1) 1100 W, High-stage hermetic type, (1) 1100 W, Low-stage hermetic type |
| EVAPORATOR | High-stage cascade condenser type, Low-stage tube on sheet type |
| REFRIGERANT | High-stage R407D, Low-stage HFC mixed refrigerant |
| TEMPERATURE CONTROL RANGE | -125ºC to -150ºC (ambient temperature 30ºC, no load) |
| ALARMS | High temperature, low temperature, power failure, door alarm, filter check |
| COOLING PERFORMANCE | -150ºC center of the chamber (ambient temperature 30ºC, no load) |
| TEMPERATURE CONTROL SYSTEM | Microprocessor control system |
| AREA FOOTPRINT | 13.07 sq.ft. (1.15 m2) |
| DATA MANAGEMENT | Optional with LabAlert Monitoring System |
| ENERGY CONSUMPTION AT 23oC AMBIENT | 40.8 KWh/day |
| SOUND LEVEL | 51 dB(A) [background noise 20 dB(A)] |
| STORAGE (BOXES) FOR 2”/51 MM FIBERBOARD BOXES | 150 |
| STORAGE (RACKS) FOR 2”/51 MM FIBERBOARD BOXES | 15 |
| STORAGE (BOXES) FOR 3”/76 MM FIBERBOARD BOXES | 105 |
| STORAGE (RACKS) FOR 3”/76 MM FIBERBOARD BOXES | 15 |
Model MDF-C2156VANC-PA Features
Mechanical, Air Phase Cryopreservation
The MDF-C2156VANC-PA cryogenic freezer is engineered from the inside out to create, maintain, and restore precise temperatures. The PHCbi brand mechanically refrigerated cryogenic freezer uses a reliable, high performance, hybrid cascade refrigeration system designed to achieve cryogenic temperatures of -150°C.
Mechanical cryogenic refrigeration eliminates the reliance on LN2 as a primary cooling medium for a more efficient storage medium known as "air phase" cryogenic storage. Air phase cryopreservation offers a more economical alternative to liquid nitrogen-based systems, with built-in redundancy safeguards for the ultimate in safe cryogenic preservation.
PHCbi VIP® Plus Insulation Technology
Inside-out engineering starts with our patented VIP Plus insulation composite which results in a highly efficient, thin-walled cabinet. The insulated inner lid improves temperature uniformity, minimizes cold air loss from frequent lid openings and extends warm-up times during power outages. The PHCbi VIP Plus cryogenic refrigeration offers superior performance providing unsurpassed uniformity in the chamber from top-to-bottom, side-to-side, and front-to-back.
High Capacity Storage, Minimal Cabinet Footprint
The VIP Plus cabinet design dramatically reduces wall thickness, allowing for increased cryogenic storage space in a smaller footprint. Store up to 165 2" boxes or 105 3" boxes.
Economic Alternative to LN2 Storage
The PHCbi MDF-C2156VANC-PA cryogenic freezer eliminates hazardous operating conditions as well as frequent maintenance and cost requirements of LN2 storage. It also minimizes the chance of cross-contamination among multiple samples in cryogenic storage.

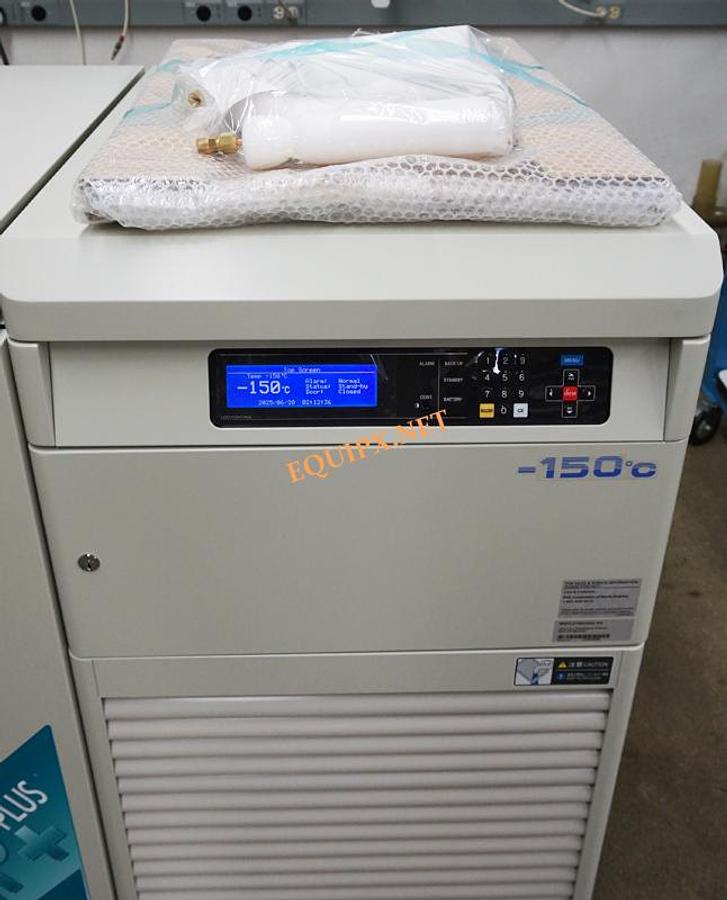

Microprocessor Temperature Control
The integrated microprocessor-based controller and LCD graphic display allow for intuitive management and monitoring of critical set points. The controller uses an extremely precise and long-lasting platinum RTD sensor.
PHC Designed Compressors
The robust -150°C Cryogenic Freezer is powered by PHC designed compressors. This provides superior performance leading to faster pull-down speed and unsurpassed uniformity throughout the chamber.
Environmentally Friendly
Energy efficiency in VIP Plus freezers is achieved through balanced temperature performance and power management.
Overview
-150°C Cryogenic Freezer
The PHCbi VIP PLUS Cryogenic Series -150°C ultra-low temperature freezers offer superior performance. As a cryogenic freezer or cryogenic storage space, these products provide unsurpassed uniformity in the chamber, from top-to-bottom, side-to-side, and front-to-back.
The MDF-C2156VANC-PA, -150°C Cryogenic Freezer, cooling performance provides VIP Plus insulation for temperature uniformity for long-term storage, an economical alternative to LN2 storage, and maximum storage within a minimal footprint.
