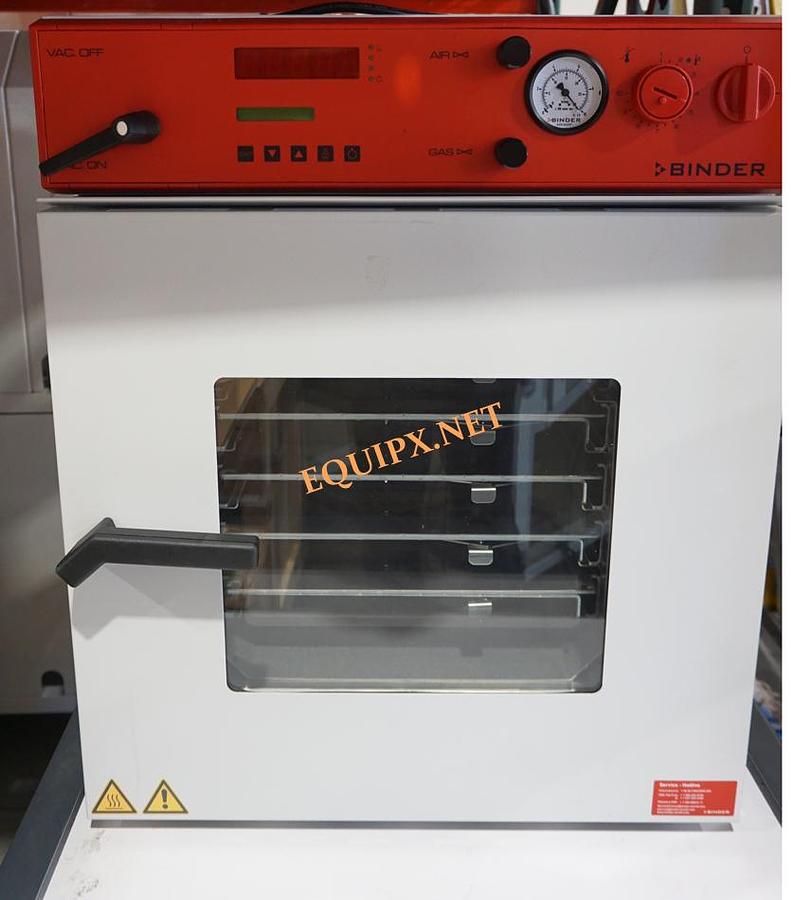

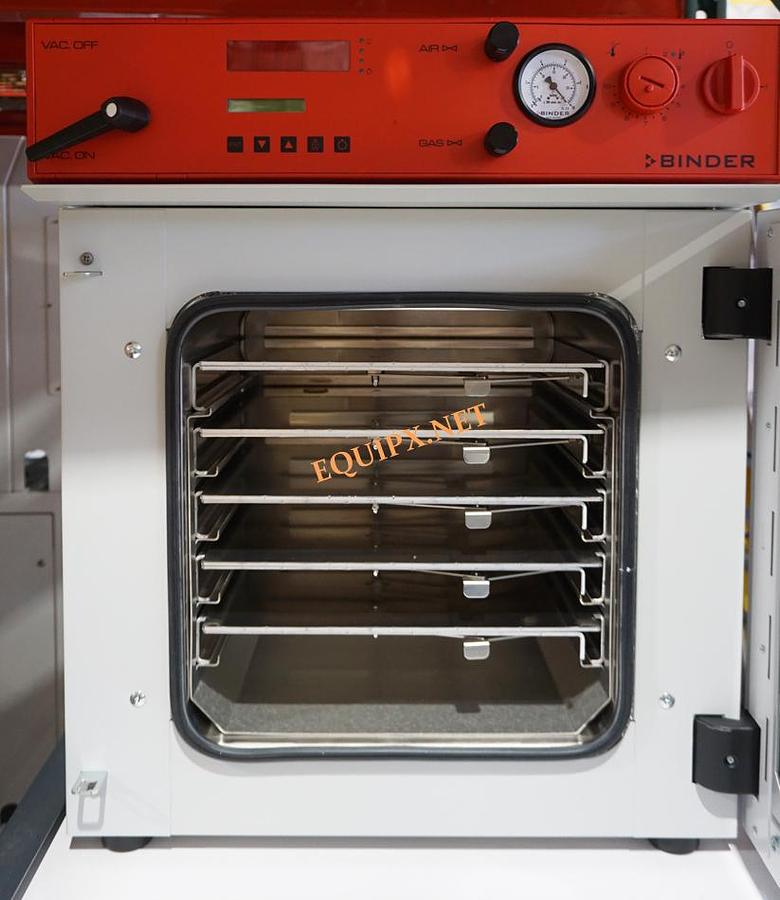

Binder VD53 vacuum oven max temp 200C 1.9cuft

The BINDER VD 53 (version VD053UL-120V), vacuum drying chamber has a capacity of 1.9 Cu Ft (53 L) and a temperature range +15° to 200°C and requires 120V power. A BINDER vacuum drying oven VD series gently dries materials with homogeneous temperature distribution. The patented expansion shelf technology from BINDER ensures optimal heat transfer. The shelves are easy to position where required and the inner chamber of the vacuum drying oven is easy to clean.

APT.line™ preheating chamber technology

Controller with time-segment and real-time programming

2 stainles shelves included with option for 3 additional shelves

Inert gas connection

Shatterproof, spring-mounted safety glass panel

Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

Computer interface: RS 422

2 relay outputs, 24 V DC (max. 0.4 A)

Technical Specifications:

Temperature range 15 °C above ambient temperature to [°C]	200
Temperature variation at 100 °C [± K]	2
Temperature fluctuation [± K]	0.1
Heating-up time to 100 °C [min]	80
Permitted end vacuum [mbar]	0.01
Leak rate [bar/h]	0.01
Rated Voltage [V]	120
Power frequency [Hz]	60
Nominal power [kW]	1.2
Unit fuse [A]	12.5
Phase (Nominal voltage)	1~
Vacuum connection with small flange [DN mm]	16
Measuring access port with small flange [DN mm]	16
Inert gas connection with flow limiter (RP")	3/8
Overall Width [in]	25.02
Overall Height [in]	30.53
Overall Depth [in]	21.67
Wall clearance back [in]	3.94
Wall clearance sidewise [in]	5.32
Viewing window width [in]	13.79
Viewing window height [in]	12.1
Unit doors	1
Chamber Width [in]	15.76
Chamber Height [in]	15.76
Chamber Depth [in]	13.4
Interior volume [cu.ft.]	1.9
Net weight of the unit (empty) [lbs]	209
permitted load [lbs]	99
Load per rack [lbs]	44
Number of shelves (std./max.)	2/5
