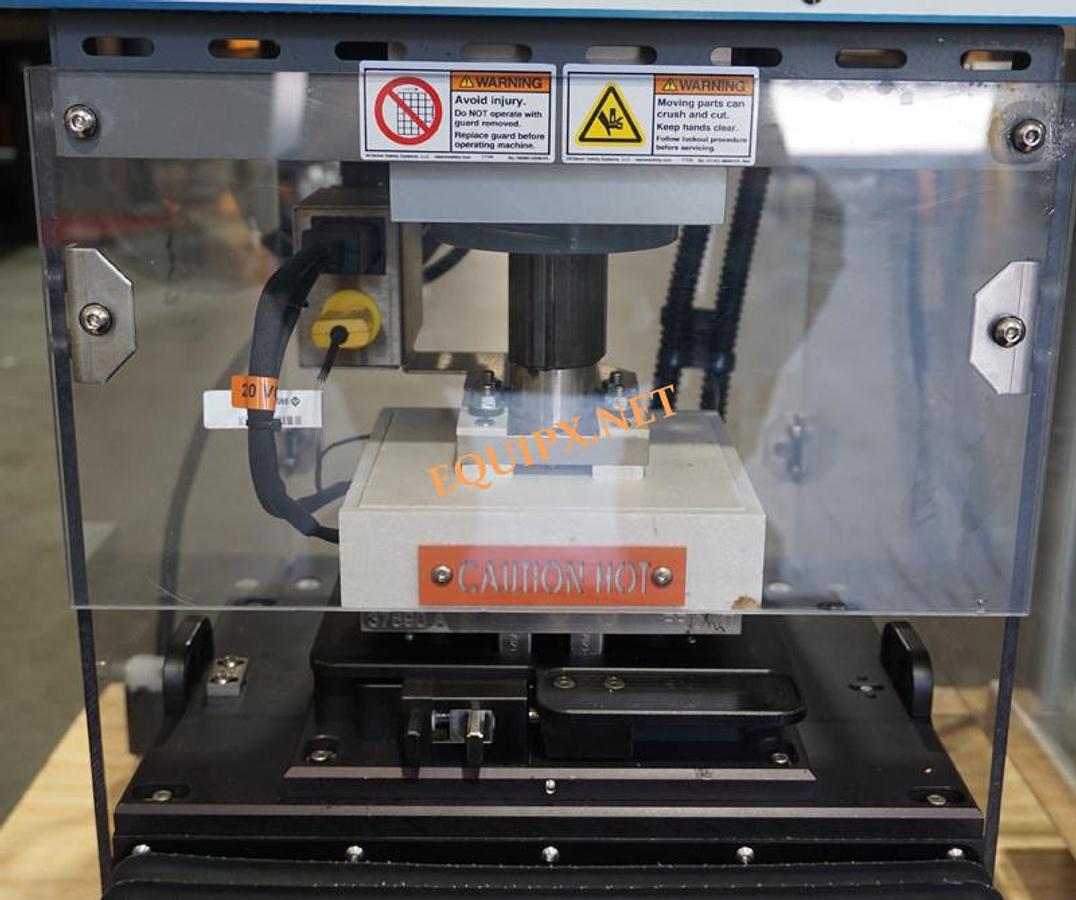

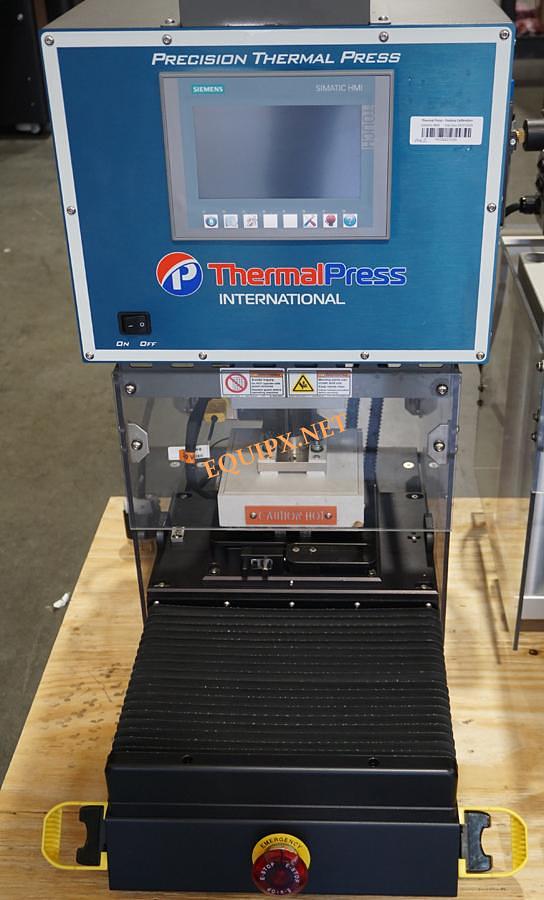

Thermal Press C50MM with open C frame construction

SPECIFICATIONS:

- Electrical: (Standard) 220VAC (15A MAX)

*Pneumatic (MAX): 10-100 psi (0.7-7 bar), 2-4 SCFM

- Standard Stroke: 4 inches (102 mm)

- *Throat Depth: 7.5 inches (190 mm)

- *Column Height: 8+ inches (203+ mm)

- *Force Output (MAX): Model C50 = 1000 lbs (450 kgs)

- *Weight (est): 175-250 lbs (75-114 kgs)

- *Work Surface Requirements: 24”W x 32”D x 30”H

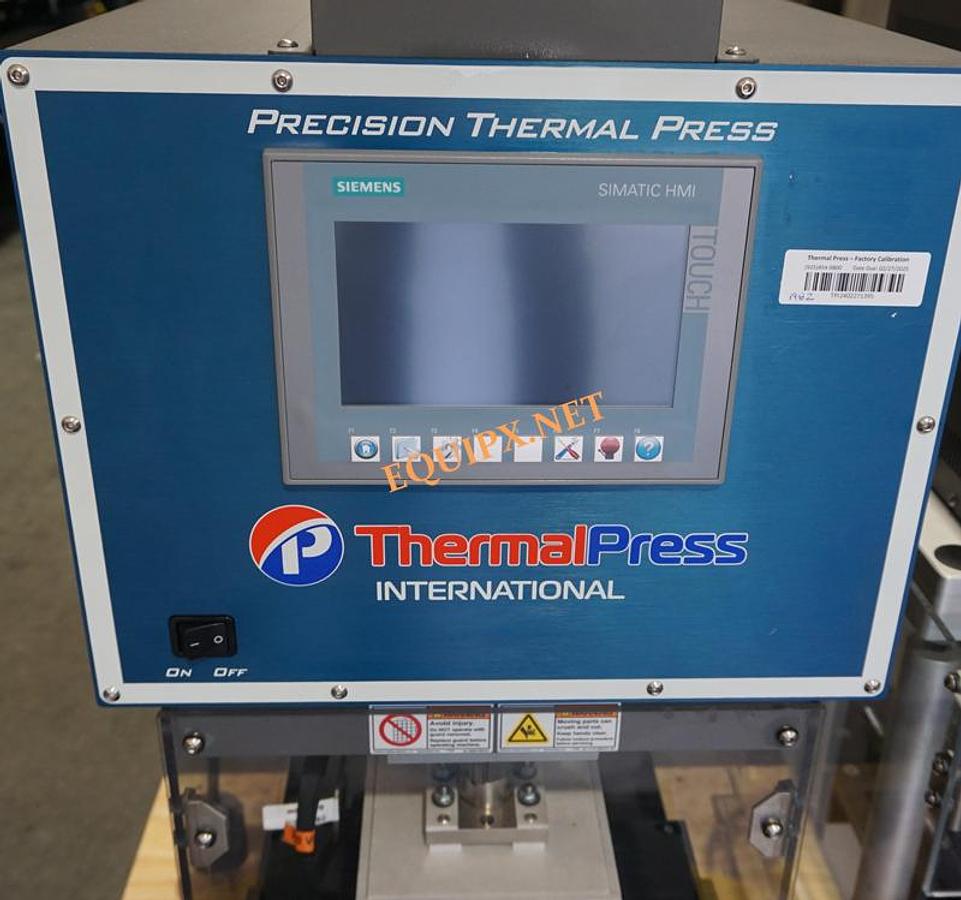

- Open format “C-Frame” Construction - HMI Color Touchscreen (Operation & Setup)

- Recipe Storage via HMI Touchscreen - HMI with Multi-Programmable USER/PW

- Integrated Digital PID Temperature Controls - Integrated Timers & Linear Positional Data

- Programmable Process Parameter Alarms

- Programmable Digitally Controlled Motion

- OSHA, CE, NFPE, and NEC compliant
