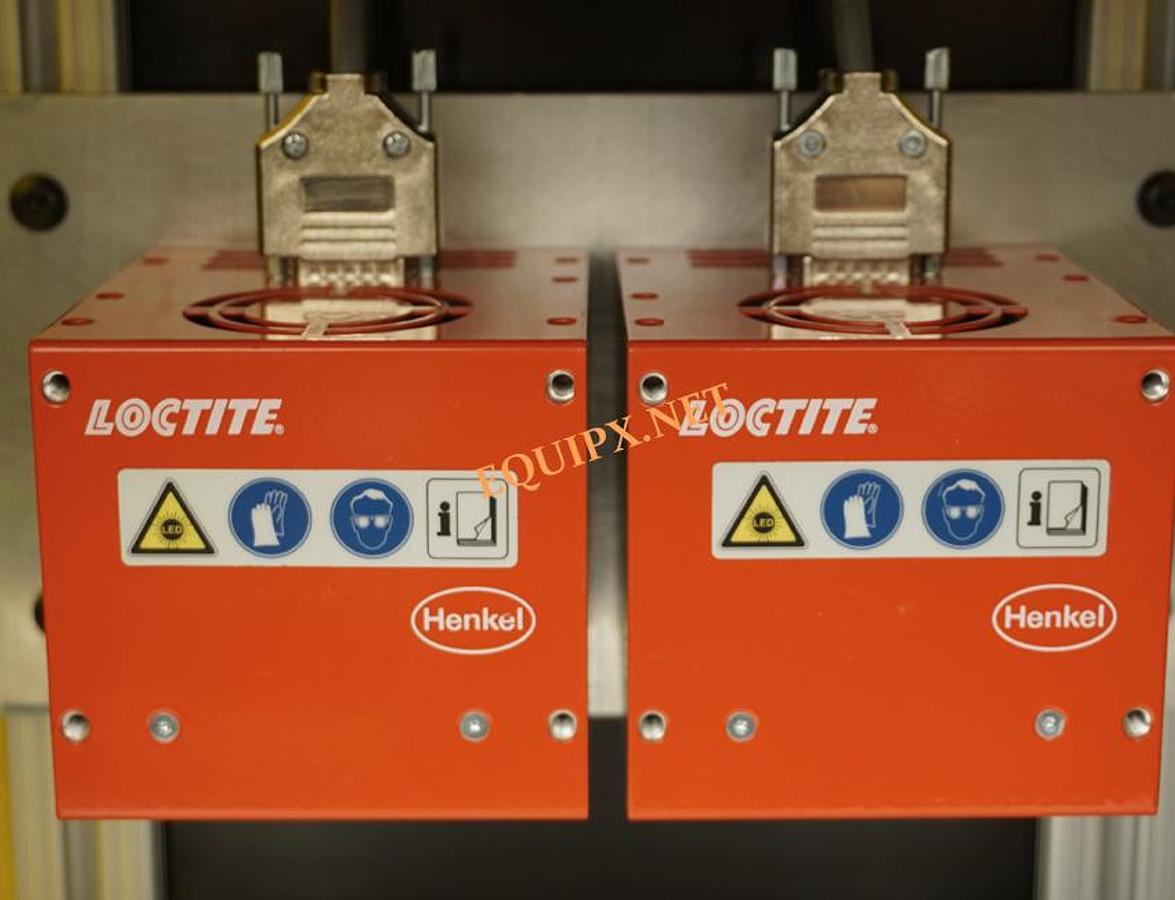

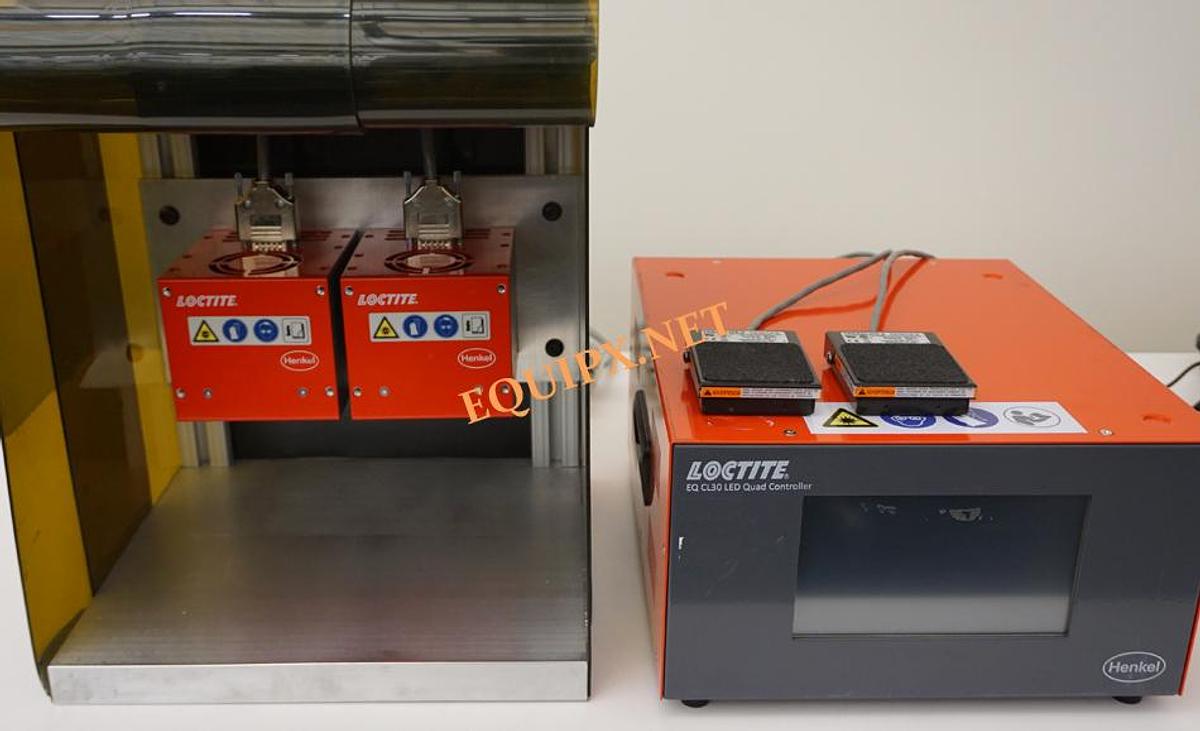

Loctite EQ CL30 LED Quad Controller with dual light assembly

Loctite EQ CL30 LED Quad Controller with dual light assembly

$8,250 (USD)

or
Call (408) 209-9278

Description

The CL30 LED Flood System is a high intensity flood system specially designed for curing LOCTITE® UV and Visible Light Cure adhesives. The modular configuration consists of an LED head and LED Flood System Controller.
FEATURES:
  • Each CL30 head is equipped with 144 high power LED’s and integrated reflectors, providing uniform curing across a wide area (100 mm x 100 mm or 4 inches by 4 inches). The heads can also be stacked side by side in two directions further expanding the curing area for maximum flexibility
  • The expected lifetime of the LED’s is more than 20.000 hours under normal operating conditions
  • The CL30 system is compatible with manual work stations as well as automated production lines
  • It can be operated via a foot switch or a PLC and run in either timer or continuous mode
  • LED heads stackable in two directions
  • Expected LED life over 20,000 hours (30% intensity decay) with proper handling

    • This LOCTITE® LED Flood Quad Controller supplies power and control for up to four (4) LOCTITE® LED Flood Arrays.
    FEATURES:
  • The LED Flood Array wavelength is selected according to the curing requirements of the adhesive
  • For a given irradiance, the exposure time required to fully cure the adhesive depends primarily on the properties of the adhesive and the optical properties of the substrate that the light is transmitted through
    • Show All

    Specifications

    Stock Number5146
