Excelitas OmniCure LX500-4 LED 4 Channel UV Curing System with 1 max head 365nm x55mm

Excelitas OmniCure LX500-4 LED 4 Channel UV Curing System with 1 max head 365nm x55mm

$3,650 (USD)

or
Call (408) 209-9278

Description

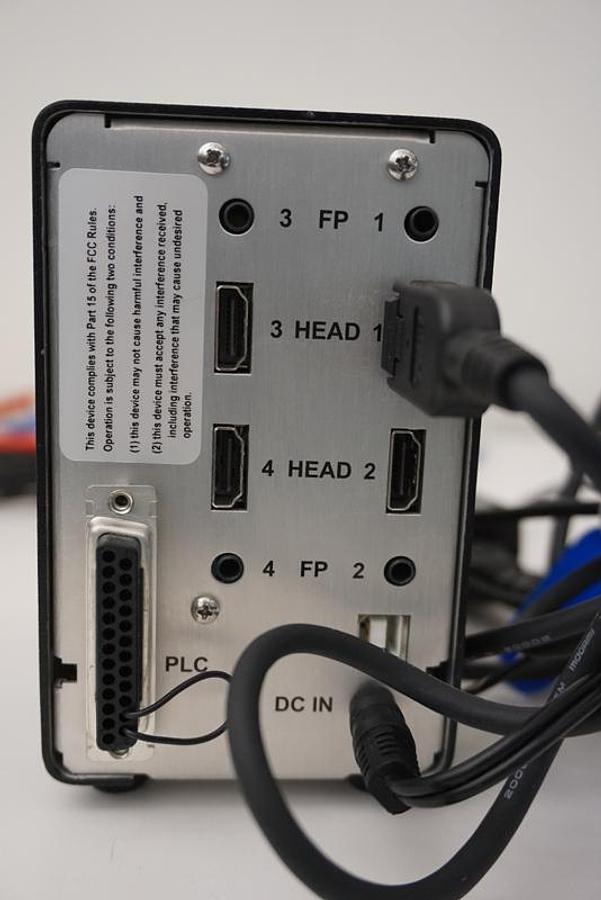

  • OMNICURE 4 Channel Controller P/N 019-00375R

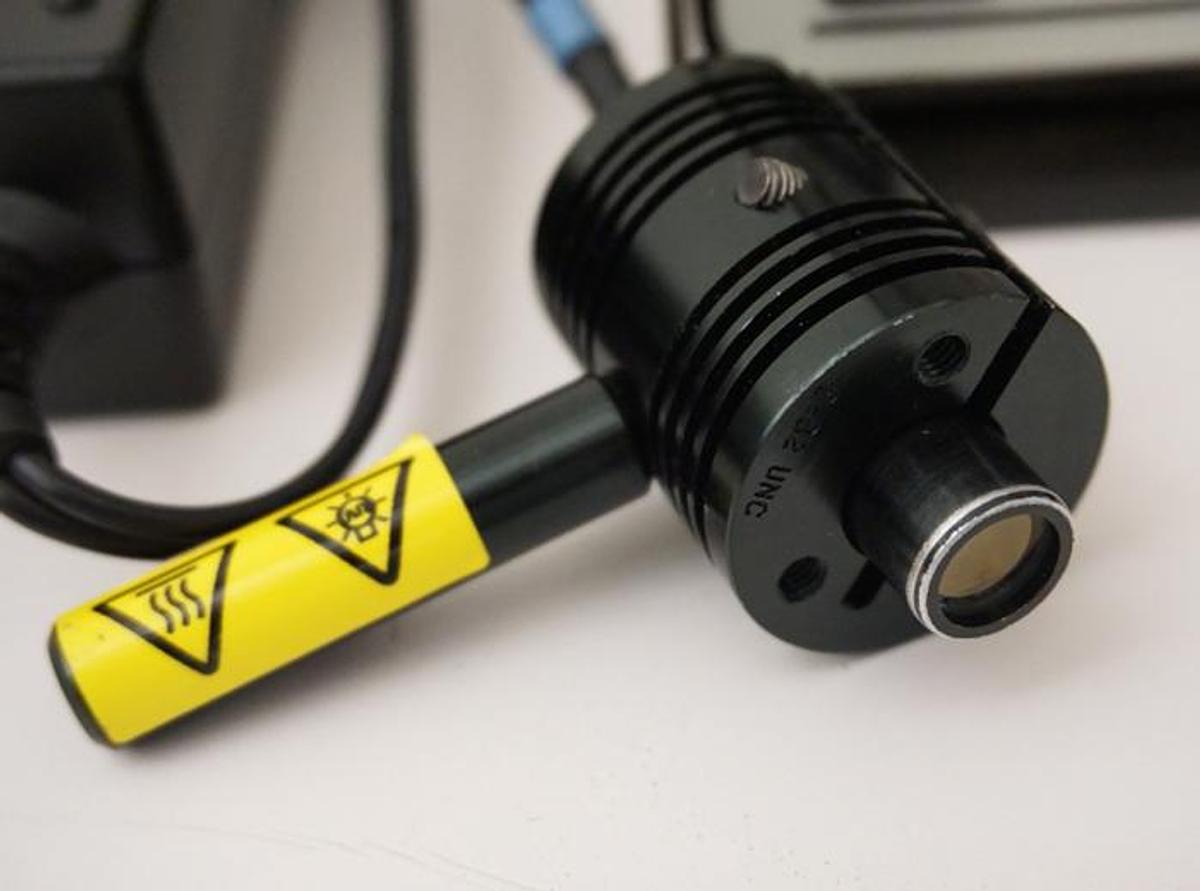

  • Includes OMNICURE LED MAX head 365nm x 55mm P/N 019-00286R
  • includes P/N 019-00087R Mounting clamp with heat sink

  • Multiple wavelengths at high irradiance: Faster curing time and higher power efficiency
  • 17 W/cm² at 365 nm and 750mw total optical power
  • 28 W/cm² at 385 nm and 1050mw total optical power
  • 27 W/cm² at 395 nm and 1085mw total optical power
  • 24 W/cm² at 405 nm and 1075mw total optical power
  • Precise light intensity control: Consistent and repeatable UV process for highest product quality
  • Intelli-Lamp LED technology: UV irradiation stability for power efficiency and long-term reliability over LED lifetime
  • Simultaneous or individual control of up to four UV LED curing heads: Versatility in production setup via a single controller
  • Micro SD card interface: Easy programming of single/multiple controllers in a single step; automatically saves exposure events and faults in real time
  • LED head temperature display: Optimum efficiency in UV process while extending UV LED head lifetime
  • StepCure®: Customized multi-phase curing processes programmed directly from the controller or by PC interface
  • High energy efficiency:  Approximately 75% less energy consumption than a typical UV arc-lamp curing system
  • Compact and robust system design: High performance in dense and harsh manufacturing environments; no additional cooling required
  • Intuitive front panel control: Simple to use for quick system set-up in a matter of minutes
  • Certifications & safety standards: CE and RoHS compliant



    • Show All

    Specifications

    Stock Number5182
