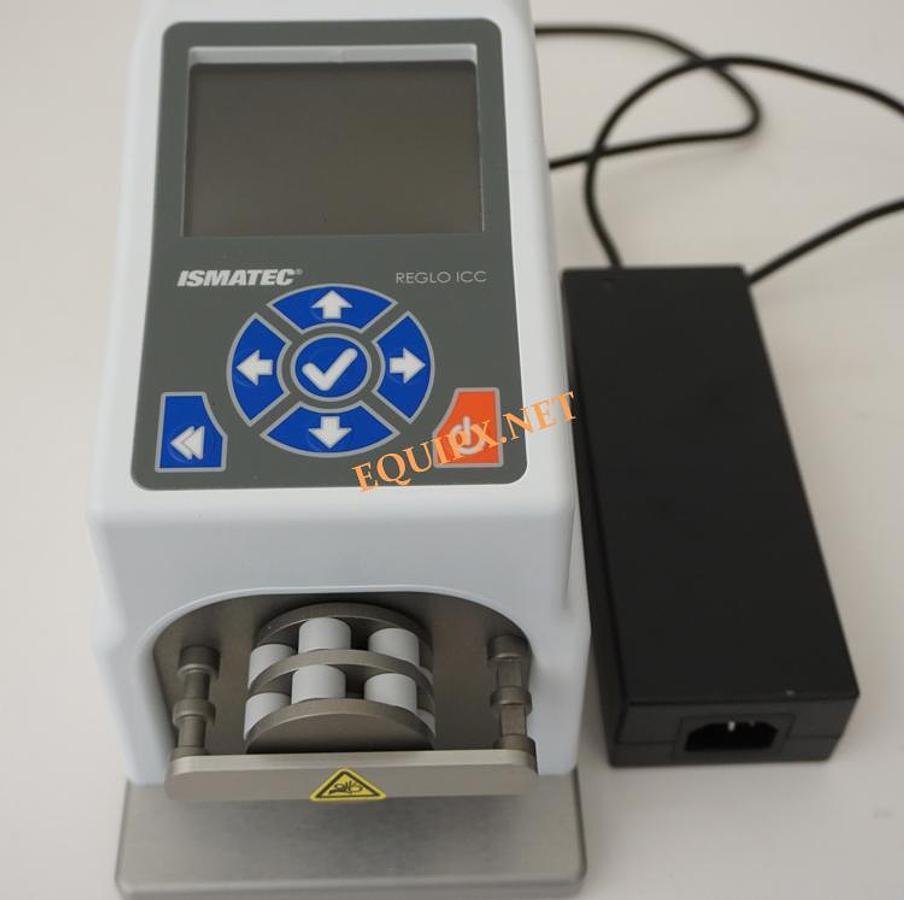

Ismatec ISM4206 2 channel digital peristaltic pump

Ismatec ISM4206 2 channel digital peristaltic pump

$2,850 (USD)

or
Call (408) 209-9278

Description

Independently control flow and direction of each channel via keypad or your PC.

  • Flow rate 0.001 to 43 ml/min per channel - flow rate depends on drive rpm, rollers, and tubing size
  • USB interface for quick connection to a PC
  • Flexibility of bidirectional flow in each channel

    • These multi-channel peristaltic pumps let you individually control the flow and direction of each channel from the intuitive keypad or via your computer—expanding your benchtop pumping capabilities with a single compact unit! Pump delivers continuous pumping or precision dispensing with the capability of bidirectional flow in each channel. Plus, independent channel calibration minimizes tube-to-tube differences, resulting in high calibration accuracy.


  • Min. flow rate per channel: 0.0002 ml/min
  • Open-head sensor:No
  • Cloud connected:No
  • Remote I/O: USB 2.0. Mini-B. RS-232
  • Digital dispensing:Yes
  • Accuracy:±1%
  • Drive IP rating:IP 30
  • Control Type:Digital
  • Voltage:100 - 240 VAC
  • Drive:Reglo ICC
  • Washdown capable:No
  • No. of Channels:2
  • Min. RPM:0.1 rpm
  • Max. flow rate per channel:35 ml/min
  • Reversible motor:Yes
  • Anti-drip:Yes
  • Max. Pressure:1 bar (14.5 psi)
  • No. of rollers:8
  • Cat. No.:MFLX78001-60-AU
  • Series:Reglo ICC
  • Model:78001-60
  • Frequency:50/60 Hz
  • Duty Cycle:Continuous
  • Tubing sizes accepted:Three-stop 0.13 mm ID to 3.17 mm ID
  • Min. Flow Rate:0.0004 ml/min
  • Maximum Flow Rate:86 ml/min
  • Power:100 - 240 VAC; 50/60 Hz
  • Description:Reglo ICC Digital Pump, 2-Channel, 6-Roller; 100 to 240 VAC, 50/60 Hz
  • Max. RPM:100 rpm
    Pump Head:Cartridge
    Width:125 mm (4.9")
    Housing material:ABS plastic
