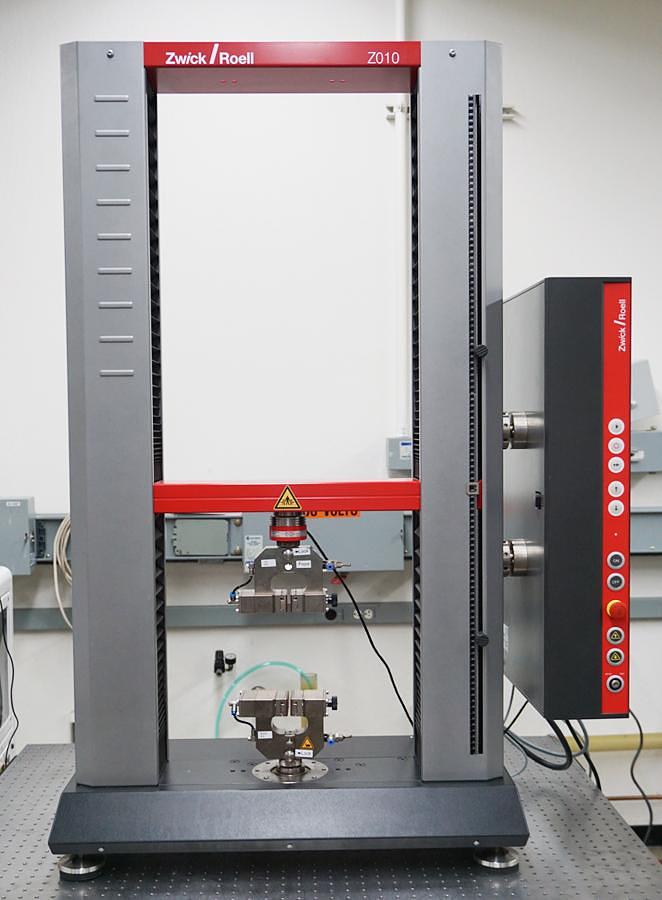

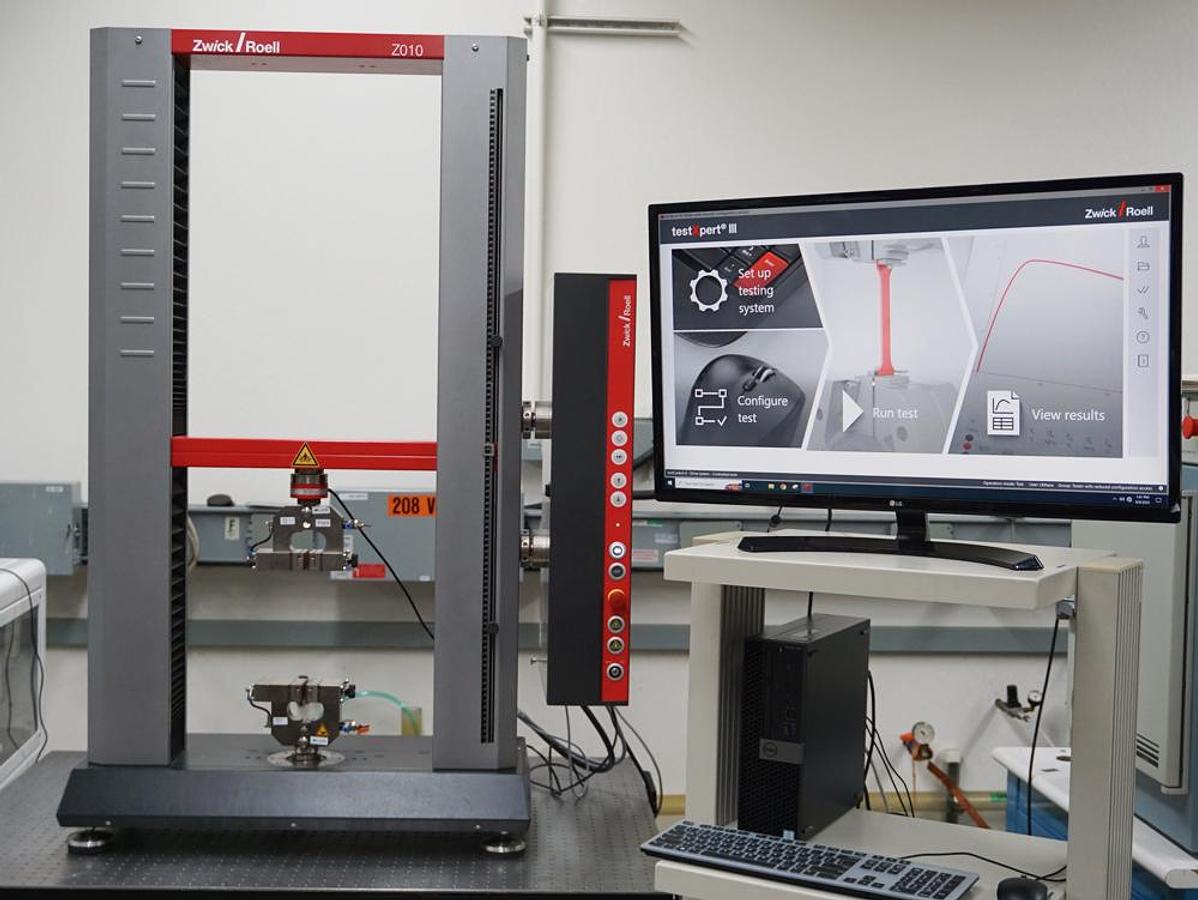

2020 Zwick Roell ProLine Z010 Materials Tensile Tester – 10 kN

Included:

10kN load cell Type Xforce HP sn 780766

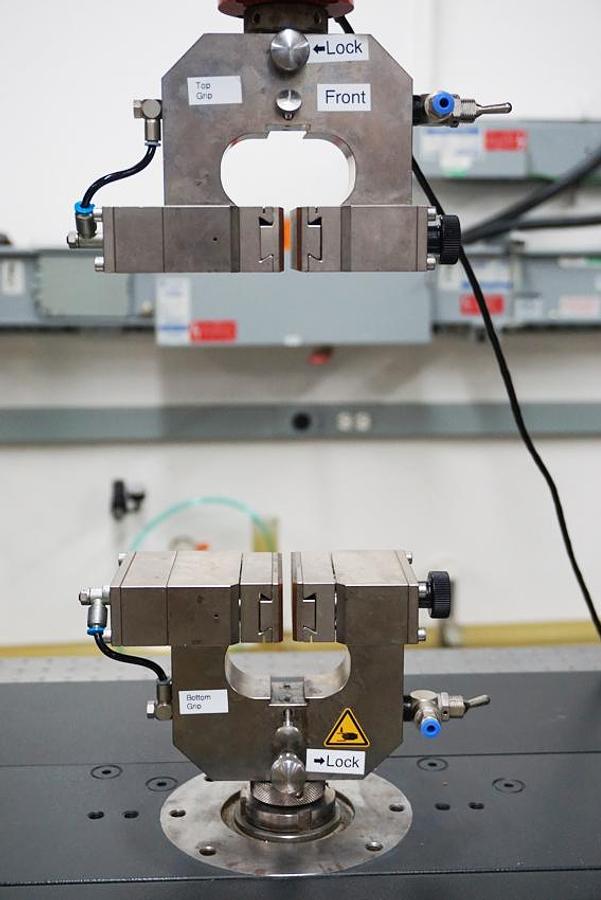

Pair 500N pneumatic grips

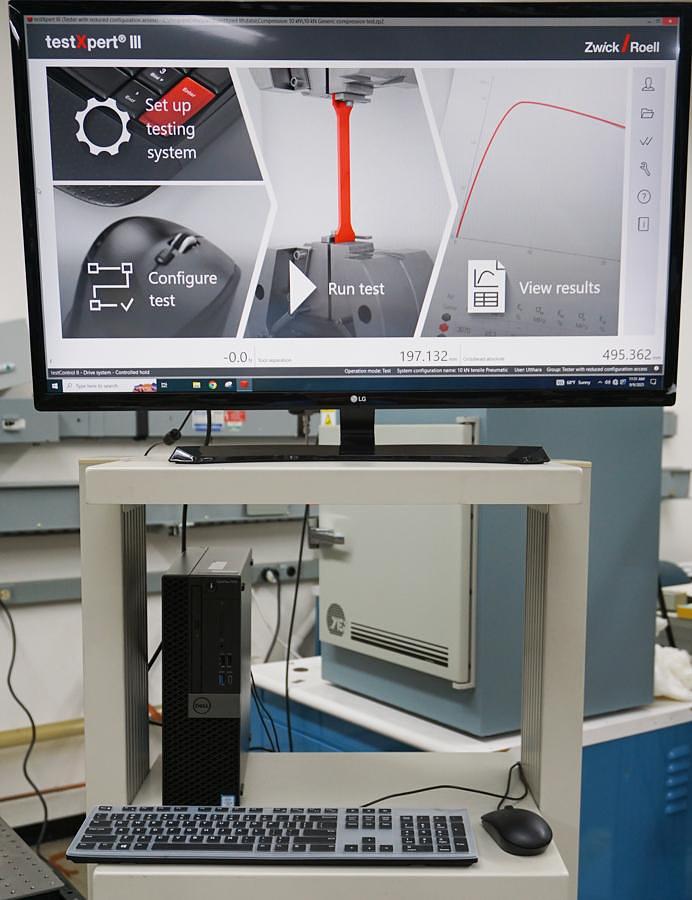

PC with testXpert III software preloaded

User Manual: Hard Copy and CD

Calibration Certificates

Options:

200N load cell Type Xforce HP sn 789764

5N load cell Type Xforce HP sn 782186

5.25" pair compression platens

Pair spring loaded grips for low force testing

Kramer Shear Test Cell for food testing

Bite Characteristics test fixtures

Zwick 110v to 220v Transformer

The ZwickRoell Proline Z010 Materials Tensile Tester is a cutting-edge testing instrument specially designed for accurately measuring the mechanical properties of materials under tensile loads. With a load capacity of 10 kN, this versatile machine can handle a wide range of testing applications. It features a robust and precise force measurement system that ensures reliable and repeatable results. The Proline Z010 is equipped with advanced safety features, such as overload protection and emergency stops, to ensure the safety of operators during testing procedures. The machine is also equipped with user-friendly software that allows for easy test setup, data acquisition, and analysis. Additionally, the Proline Z010 can be customized with various grips, extensometers, and accessories to cater to specific testing requirements. Its sturdy construction, high-quality components, and exceptional performance make the ZwickRoell Proline Z010 Materials Tensile Tester an ideal choice for research, quality control, and material testing laboratories.

Specifications

– Load capacity: 10 kN (2248lbs)– Force measurement accuracy: ±0.5% of indicated load– Testing speed range: 0.001 to 2500 mm/min– Testing stroke: Up to 800 mm– Crosshead speed accuracy: ±0.5%– Maximum specimen length: 800 mm– Maximum specimen diameter: 32 mm– Test control and data acquisition software: User-friendly interface with various testing options and analysis capabilities– Overload protection: Automatic safety feature to prevent damage during testing– Emergency stop button: Ensures operator safety during testing procedures– Optional accessories: Grips, extensometers, and specimen alignment tools– Power supply: 400 V / 50 Hz or 230 V / 60 Hz (depending on region)– Dimensions (L × W × H): Approximately 950 mm × 620 mm × 2180 mm– Weight: Approximately 800 kgmanufacture Date 2020sn 735930Dell Desktop PC wioth Zwick/Roell Testing software
