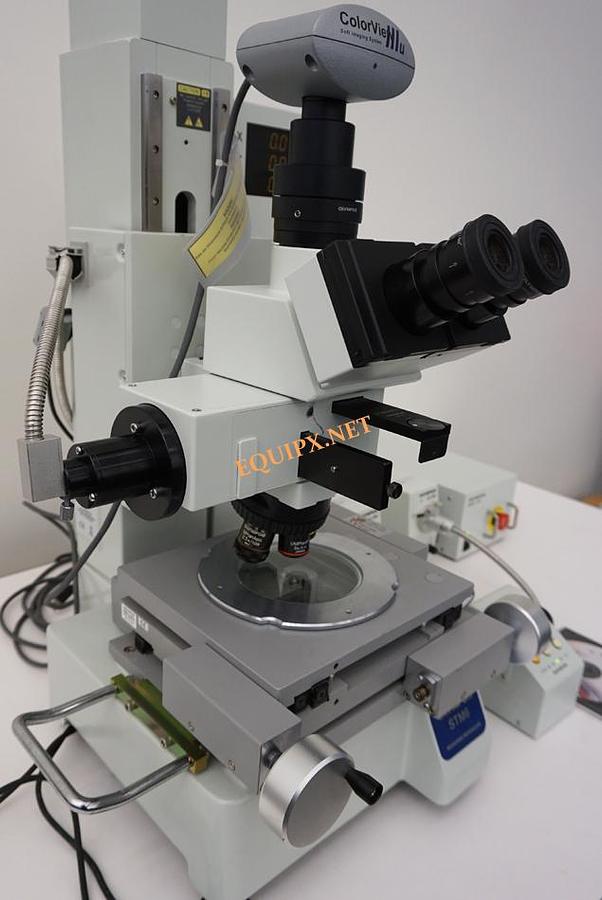

Olympus STM6-F21-3 3 axis motorized measuring microscope with 0.1um readout
Olympus STM6-F21-3 3 axis motorized measuring microscope with 0.1um readout
$18,500 (USD)
Description
Motorized Z axis focus
MM6C-PSZ power supply and keypad
Motorized XY stage with 2x2 travel and linear encoders
XYZ digital readout
UIS2 optical system
5 place manual nosepiece with brightfield objectives
M Plan APO 2.5x
UM Plan 5x
UM Plan 10x
M Plan FL N 20x
UM Plan 50x
LED transmitted and reflected illumination
Optional: Analyzer and Polarizer
Trinocular viewing head
Colorview IIIu soft imaging system with CD
Soft Imaging System's ColorView III high-resolution digital color camera features 2576 X 1932-pixel resolution and exposure time from 1 ms to 160 s. The Peltier-cooled device offers high dynamic range and frame rates, partial readout and color binning. The standard C-mount adapter ensures easy installation on most microscopes. Image acquisition and processing functions are controlled via analySiS software. Data transmission to the PC is via FireWire. Applications include materials and life sciences, and biomedicine.
OVERVIEW
The STM6 microscopes offer excellent versatility and high performance three axis measurements of parts and electrical components, with sub-micron precision. Low magnification option makes this ideal for toolmakers.
MM6C-CS50 (50x50 Table) |
Optical Linear Scale that Provides Sub-micron Resolution
Optical Linear Scale | Scale accuracy is a key point to determine the accuracy of a measuring microscope. The STM6 electrically processes and measures the optical information obtained through Olympus' optical linear scale. |
Motorized Focus Unit Available for Quick Z-axis Measurement
The STM6 has adopted a motorized focus unit that significantly improves operability when focusing and measuring a height or depth. 5 step control over the speed of the vertical Z motor, greatly reduces fatigue during operation.
Z-axis Control Box |
Counter Located at the Ideal Observation Position
Counter | The integrated counter is mounted on the microscope body, with the display unit located a eye-level for simple observation. The operator can thereby confirm a measuring value with only a slight movement of the eye, allowing concentration on the specimen under observation. |
UIS2 Optical System and LED Illumination Enhances Edge Detection
The STM6 employs Olympus' UIS2 optical system that achieves superior resolution and contrast, and LED illumination that delivers faithful color reproduction independent of changes in brightness. This greatly improves the detection of edges, thus resulting in dramatic improvement in measurement repeatability. The LED illumination is also free from flickering and brightness fluctuation, reducing eye fatigue even over extended periods of operation.
White LED | Halogen Lamp |
Specifications
| Stock Number | 4803 |
