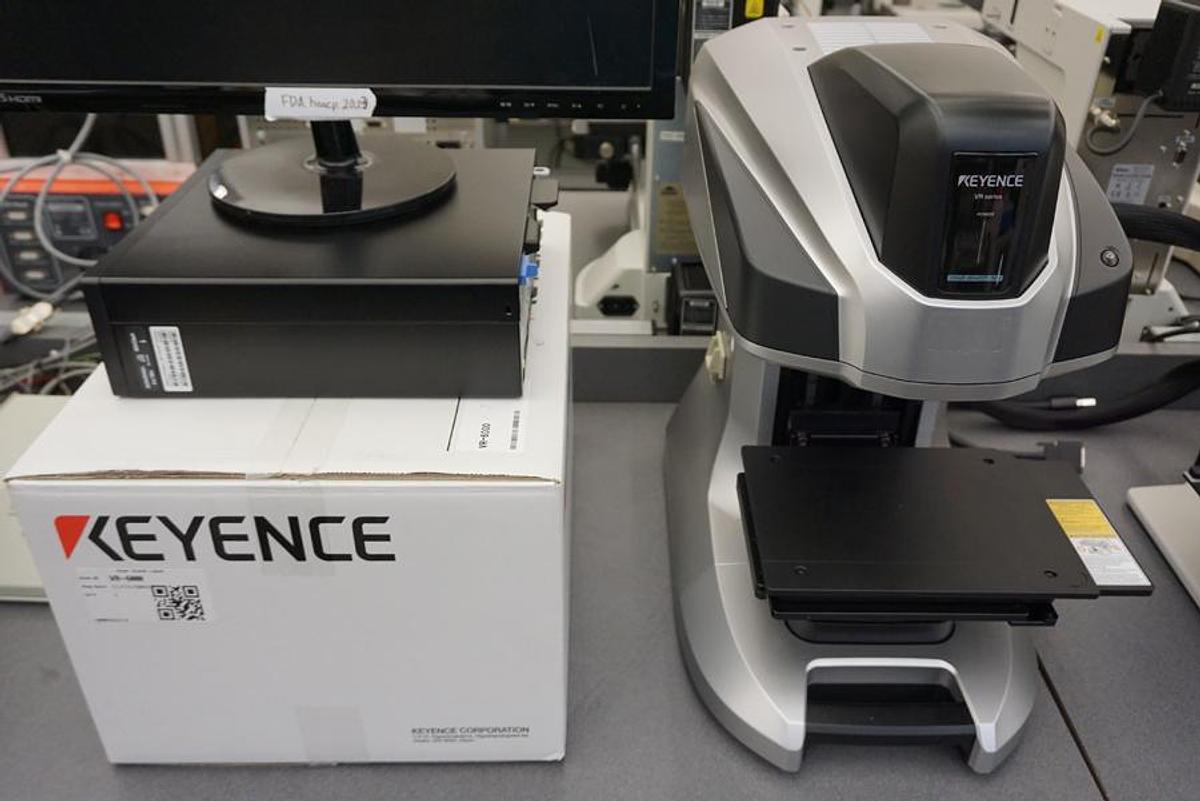

2023 Keyence VR-6100 3D Optical Profiler

The Keyence VR-6100 specifications include a 0.1 μm resolution, a 10 mm height measurement range (low magnification) and a 1 mm range (high magnification), and 0.4 μm repeatability (σ). It offers a 92 × 86 mm XY measurable range with a 70 × 70 mm manual stage, a 69 mm Z stroke, and a 4.5 kg load capacity. The device uses a high-resolution camera and a wide field of view camera for capturing full surface data and detailed features on various materials, including glossy and matte surfaces.

Key Specifications for VR-6100

• Resolution: 0.1 µm
• Height Measurement Range:Low Magnification (wide field of view): 10 mm
• High Magnification (high resolution): 1 mm
• Repeatability (σ): 0.4 µm
• XY Measurable Range: 92 × 86 mm (3.62" × 3.39")
• XY Stage Stroke: 70 × 70 mm (manual)
• Z Stroke: 69 mm (motorized)
• Load Capacity: 4.5 kg (9.92 lb)

Key Features

• Non-contact Measurement: Replaces traditional stylus profilometers and roughness meters.
• Full-Surface Data: Captures high-resolution 3D data and true-to-life cross-sections.
• Dual Cameras: Utilizes one camera for a wide field of view (low magnification) and another for high-resolution (high magnification).
• Automated Rotation: Allows for complete measurements without blind spots by rotating the target.
• HDR Scanning: Provides enhanced scanning for high-quality data on both glossy and matte surfaces.
• Versatile Applications: Measures features on medical devices, aerospace components, automotive parts, and more.
