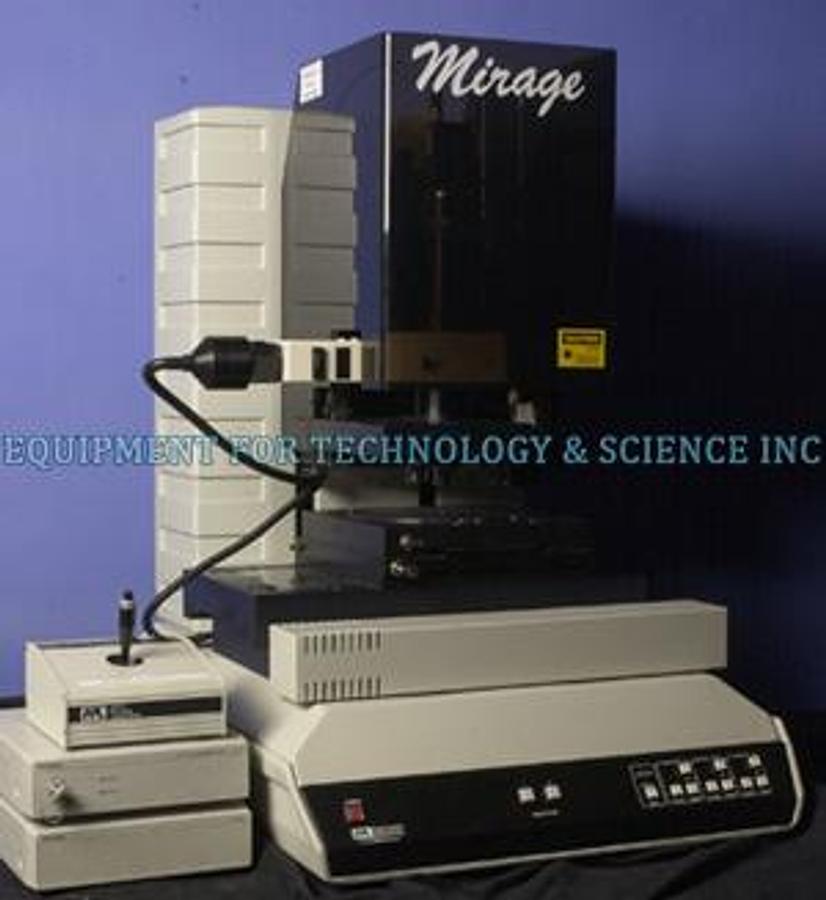

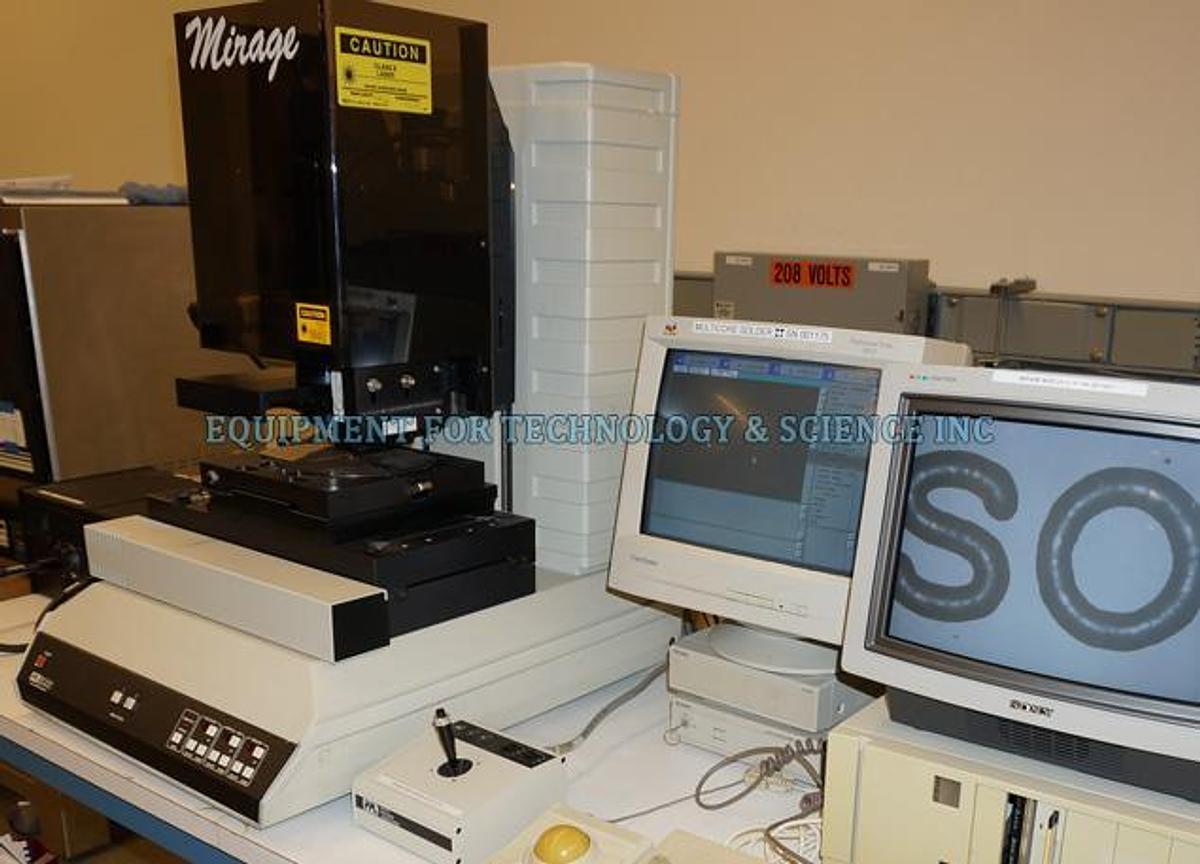

JMAR-Pacific Precision Labs Mirage 3 Axis Vision System

non-contact automatic 3-axis measureing system: See attached PDF for complete specifications

Certified grid plate calibration standard

JMAR video CMM software

automatic 2 position lens shuttle

integrated active air isolation

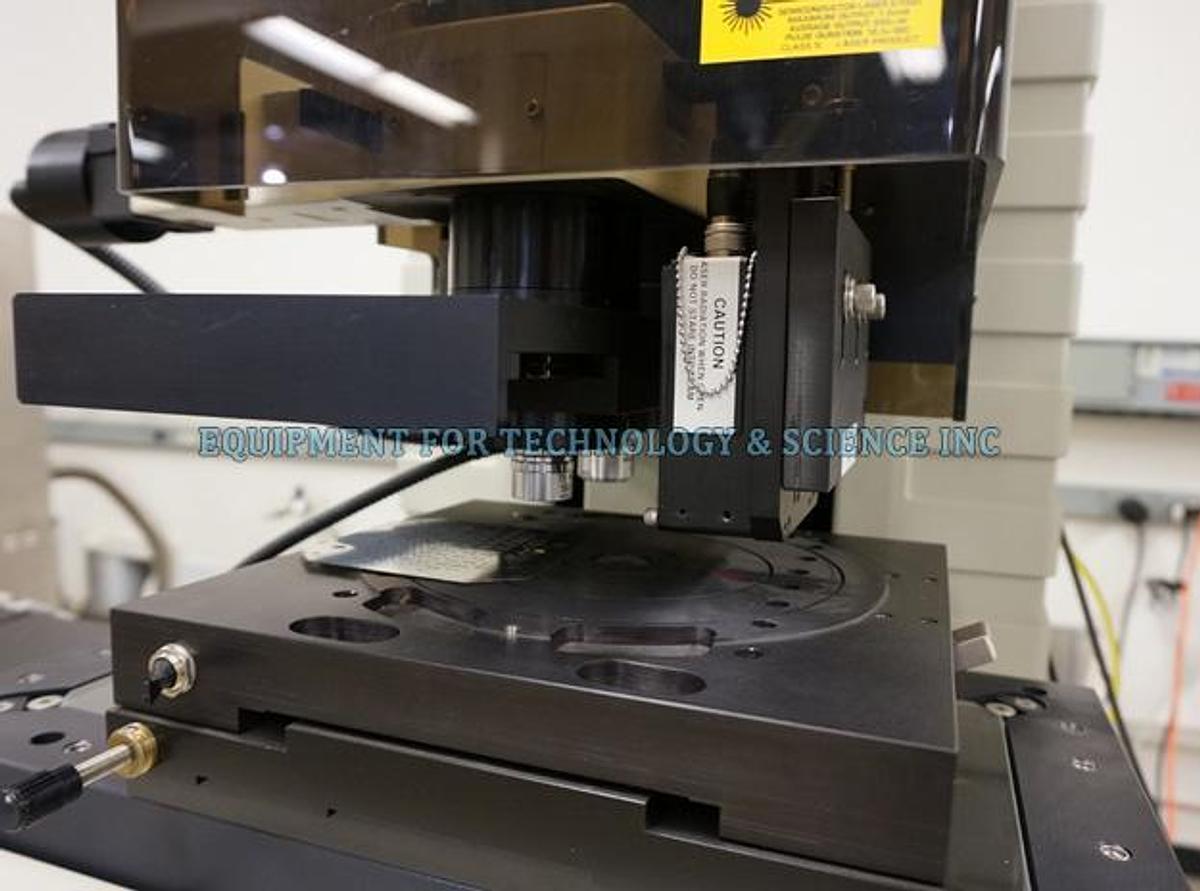

Keyence LT-8010 laser confocal Z-axis displacement meter with 0.1 micron resolution and 5mm operating range

8"x4" xy stage travel

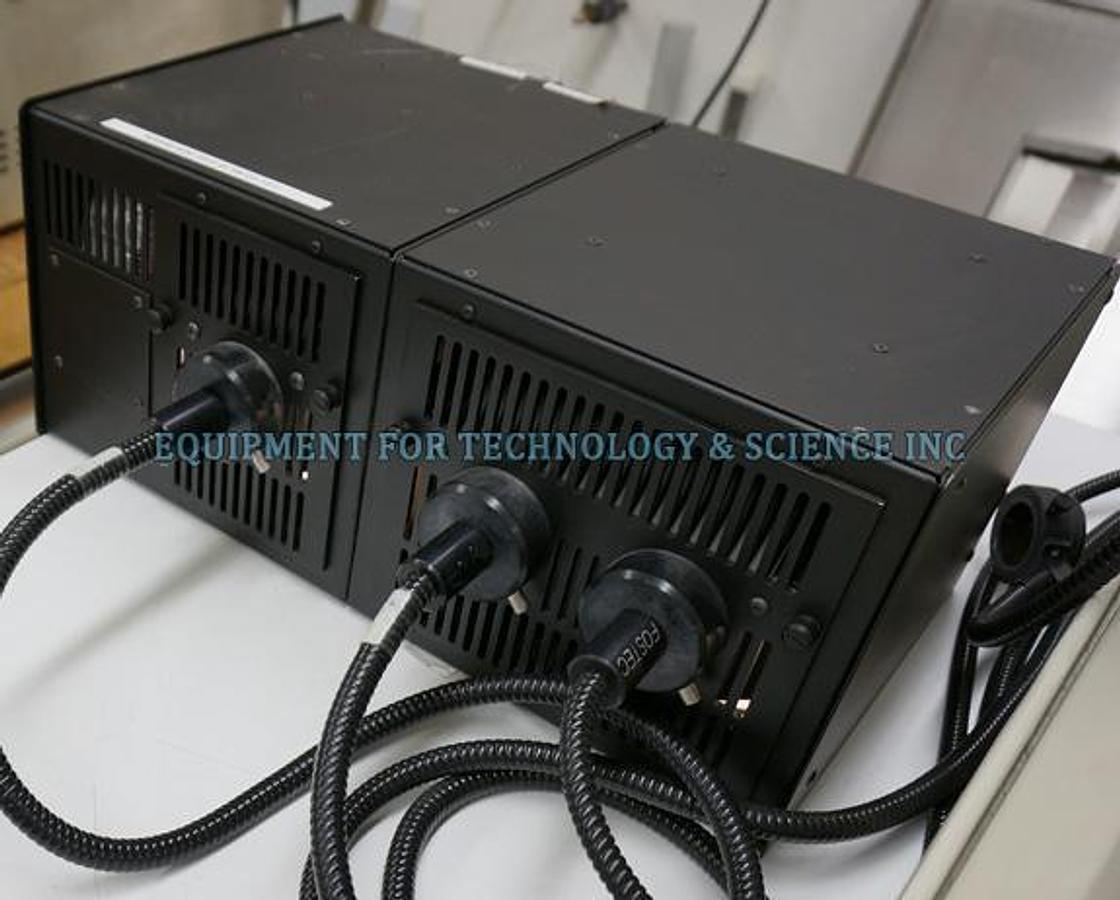

transmitted/ incident/ oblique lighting

Pentium PC controller
