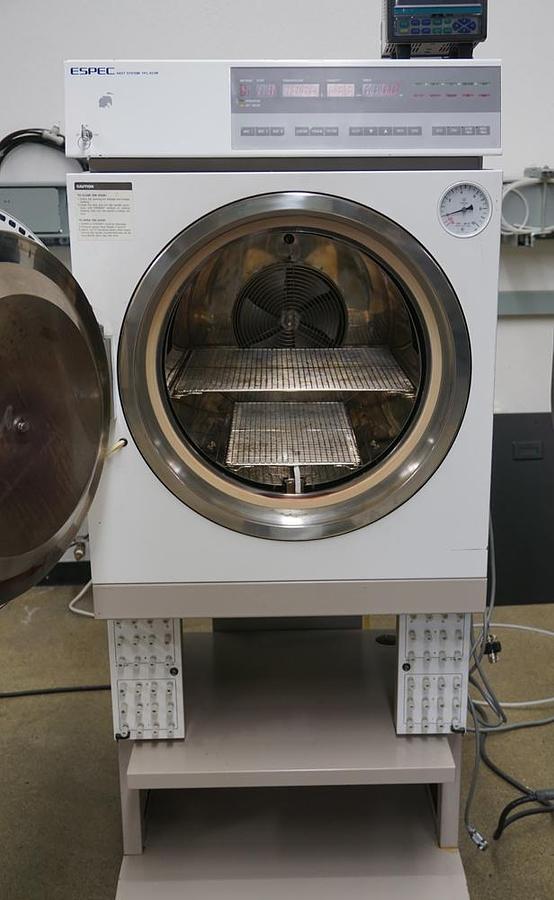

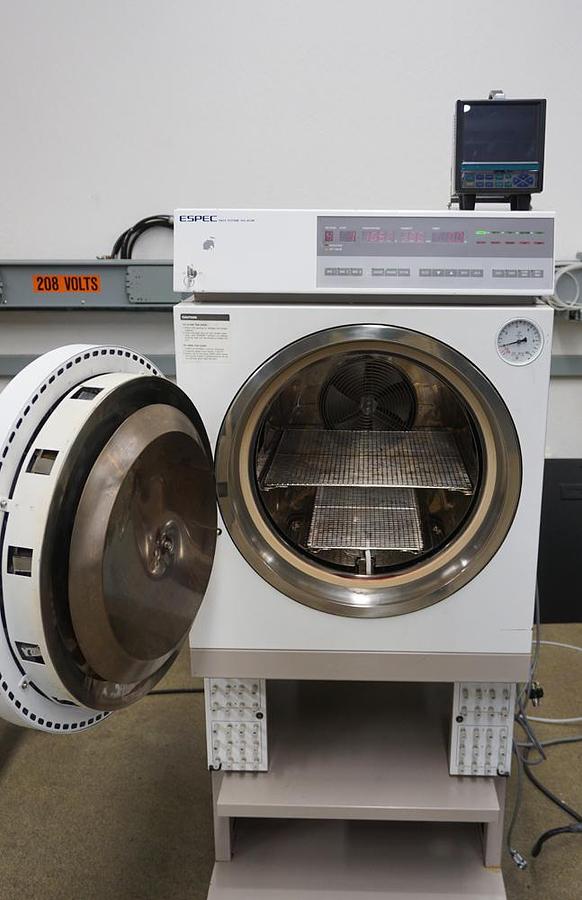

Espec TPC422 HAST chamber 15.5"dia x 17.7"deep

Espec TPC422 HAST chamber 15.5"dia x 17.7"deep

$21,500 (USD)

or
Call (408) 209-9278

Description

interior dims: 15.5" (39.5cm) diameter x 17.7"deep (45cm)

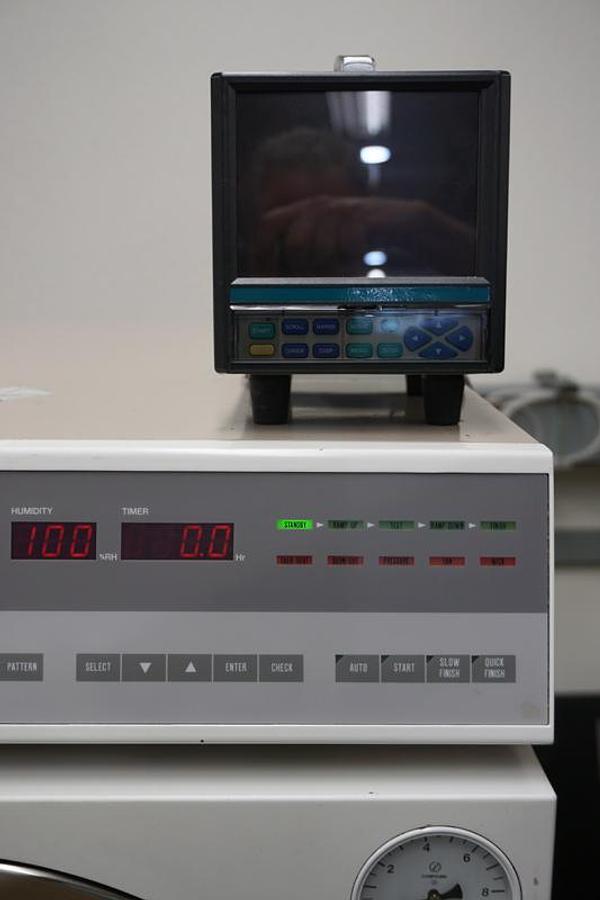

Includes data logger

Control Method
MethodContinuous control of set temperature and humidity. Program operation. Temperature heat-up or pull-down rate. Humidity control (M type).
Temperature & humidity setting control actionDirect setting of temperature and relative humidity PID control. SSR drive system.
Power Supply
50/60 Hz Single Phase
Total Loaded Current
200V AC20 Amps
220V AC18.5 Amps
Performance
Unsaturated control
Temperature control range+105.0 to +162.2°C
Relative humidity control range75 to 100% RH
Pressure control range0.2 to 4.0 kg/cm²G
Temperature & humidity constancy±0.5°C/±3% RH
Temperature uniformity±0.7°C (at 75% RH)
Heat up and pressurizing time (at RT +23°C)0 to 4.0 kg/cm²G About 90 minutes
Saturated control
Temperature control range+105.0 to +151.1°C
Pressure control range0.2 to 4.0 kg/cm²G
Temperature constancy+0.5°C
Temperature uniformity+0.5°C
Heat up and pressurizing time (at RT +23°C)0 to 4.0 kg/cm²G About 90 minutes
Dry and wet-bulb temperature control
Temperature rise
Temperature control range+105.6 to +162.2°C
Relative humidity control range75 to 95% RH
Heat up and pressurizing time (at RT +23°C)0.2 to 4.0 kg/cm²G About 120 minutes
Test process
Temperature control range:+105.6 to +162.2°C
Relative humidity control range75 to 98% RH
Pressure control range0.2 to 4.0 kg/cm²G
Temperature & humidity constancy±0.5°C/±3% RH
Temperature uniformity±0.7°C (at 75% RH)
Temperature pull-down
Temperature control range+50.0 to +95.0°C
Temperature pull-down rate (at RT +23°C no-specimen)From: +162.2°C/75% RH To: +85.0°C/85% RH) Min. about 120 minutes
Hold process
Temperature control range+50.0 to +95.0°C
Relative humidity control range75 to 95% RH
Cloth Wick200 hours continuous use (with no specimen)
Show All

Specifications

Stock Number4258
