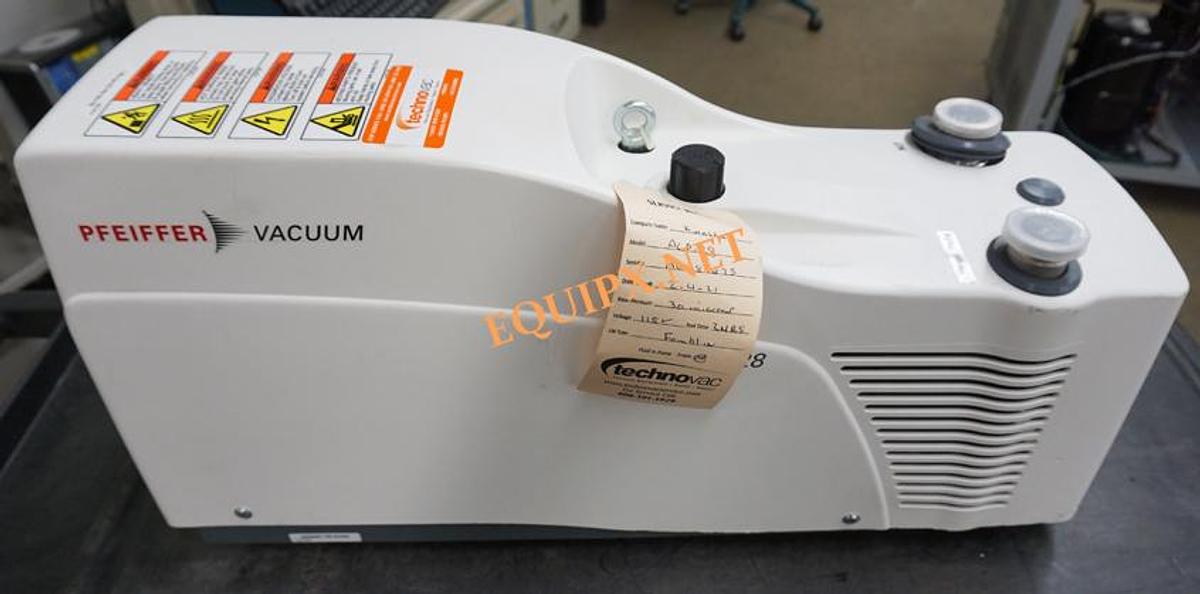

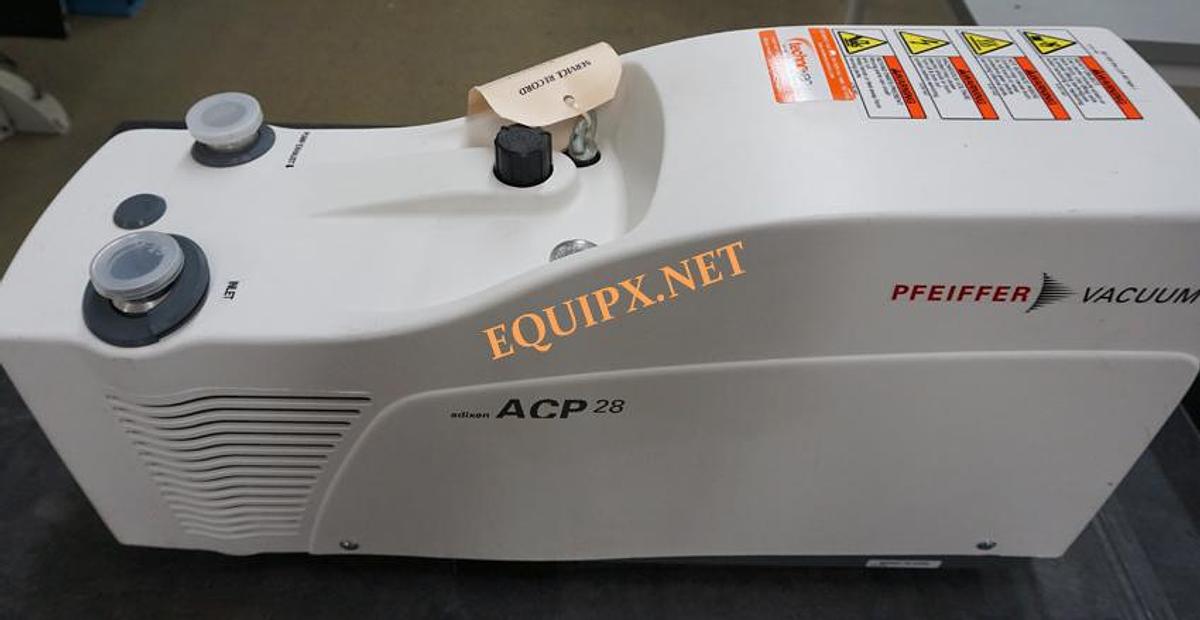

Pfeiffer ACP28 dry pump 15.89 CFM Refurbished with new tip seals 110v-220v

Pfeiffer ACP28 dry pump 15.89 CFM Refurbished with new tip seals 110v-220v

$5,450 (USD)

or
Call (408) 209-9278

Description

  • Oil-free multi-stage root pumps of the ACP series, SD versions, with a max. pumping speed of 28 m3/h
  • No particle contamination thanks to frictionless design: no wear parts in the path of the pumped gases
  • No backflow of hydrocarbon vapors: ACP series pumps are lubricant-free inside the pumping module
  • Constant performance (pumping speed, max. continuous inlet pressure, and final pressure)
  • Low maintenance costs: no annual field service, complete overhaul only every 22,000 hours for ACP 28/ 40
  • Condensable vapor ability: with gas ballast ports and drainable silencer. ACP series pumps can handle up to 1000 g/h of pure water vapor
  • Pumping speed: 27 m³/h | 15.89 cfm | 450 l/min
  • Ultimate vacuum 30mtorr without gas ballast
  • Gas ballast flow: 1.2 m³/h | 0.71 cfm | 20 l/min
  • Continuous inlet pressure, max.: 1,013 hPa | 759.75 Torr | 1,013 mbar
    • Show All

    Specifications

    Stock Number4761
    Sort0

    Documents
