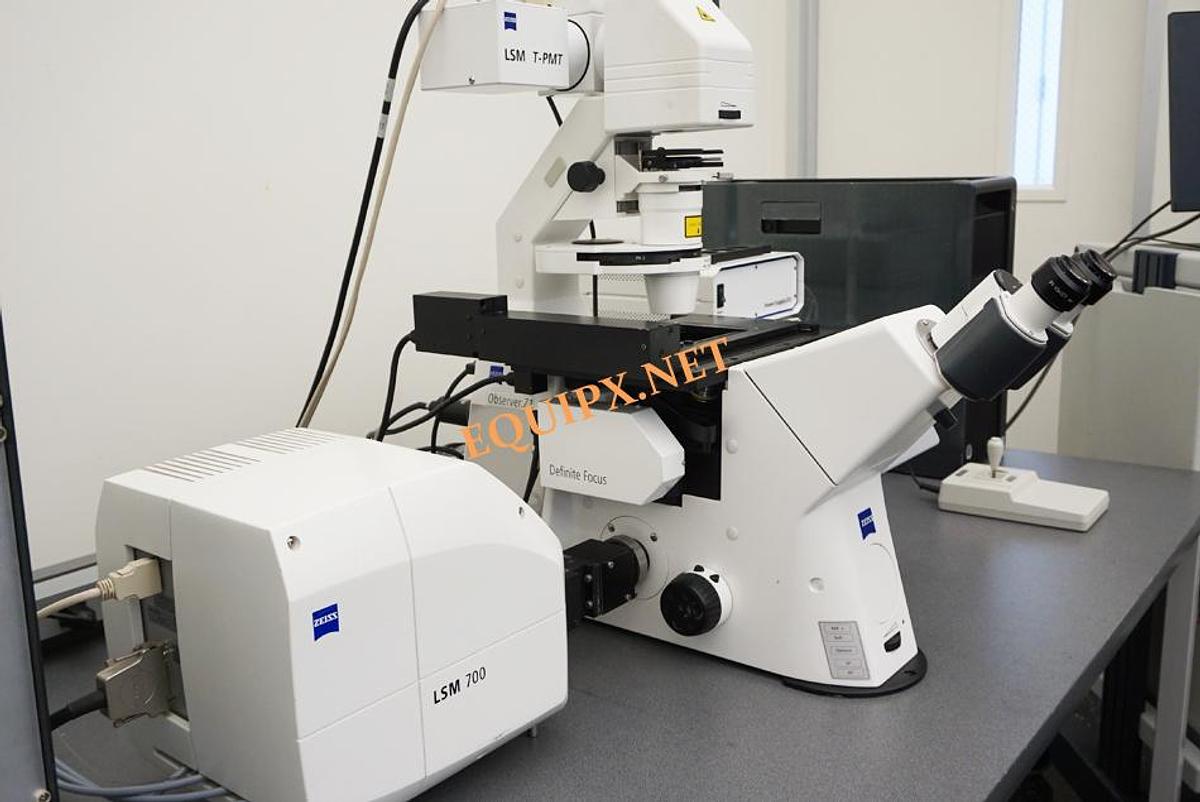

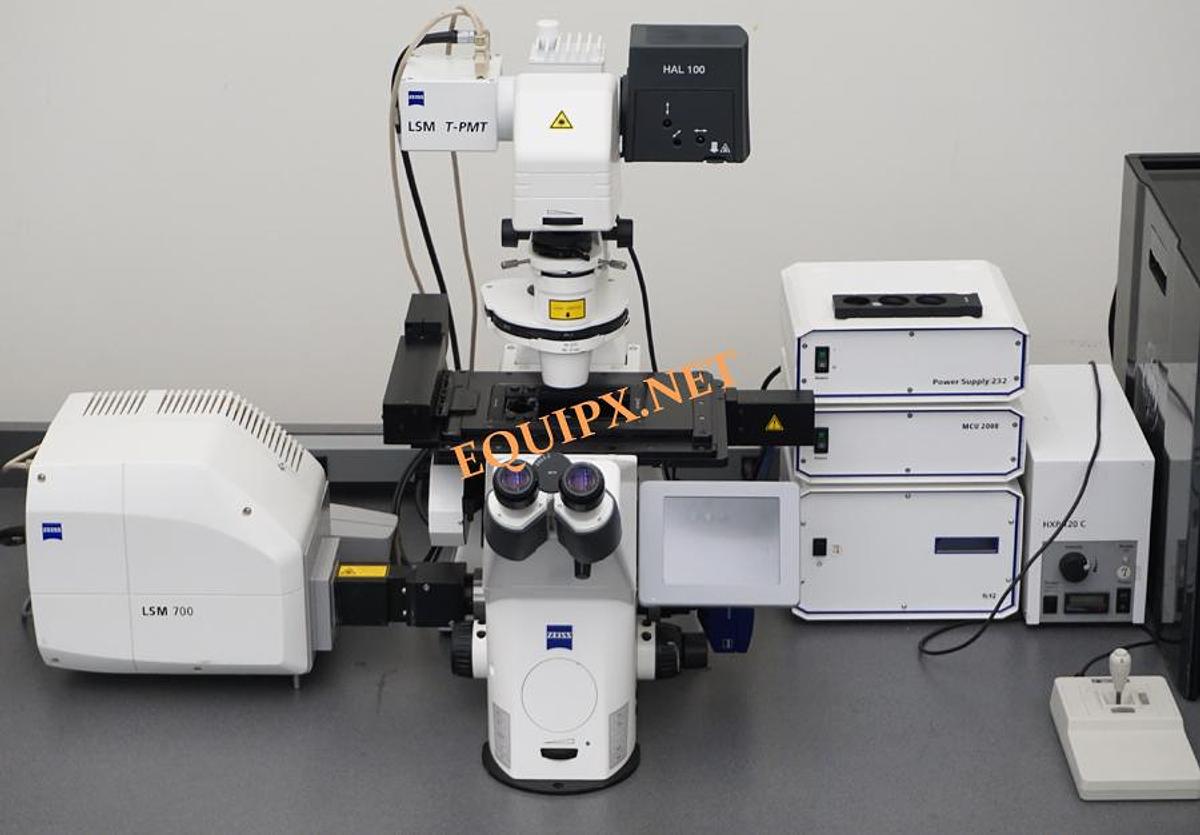

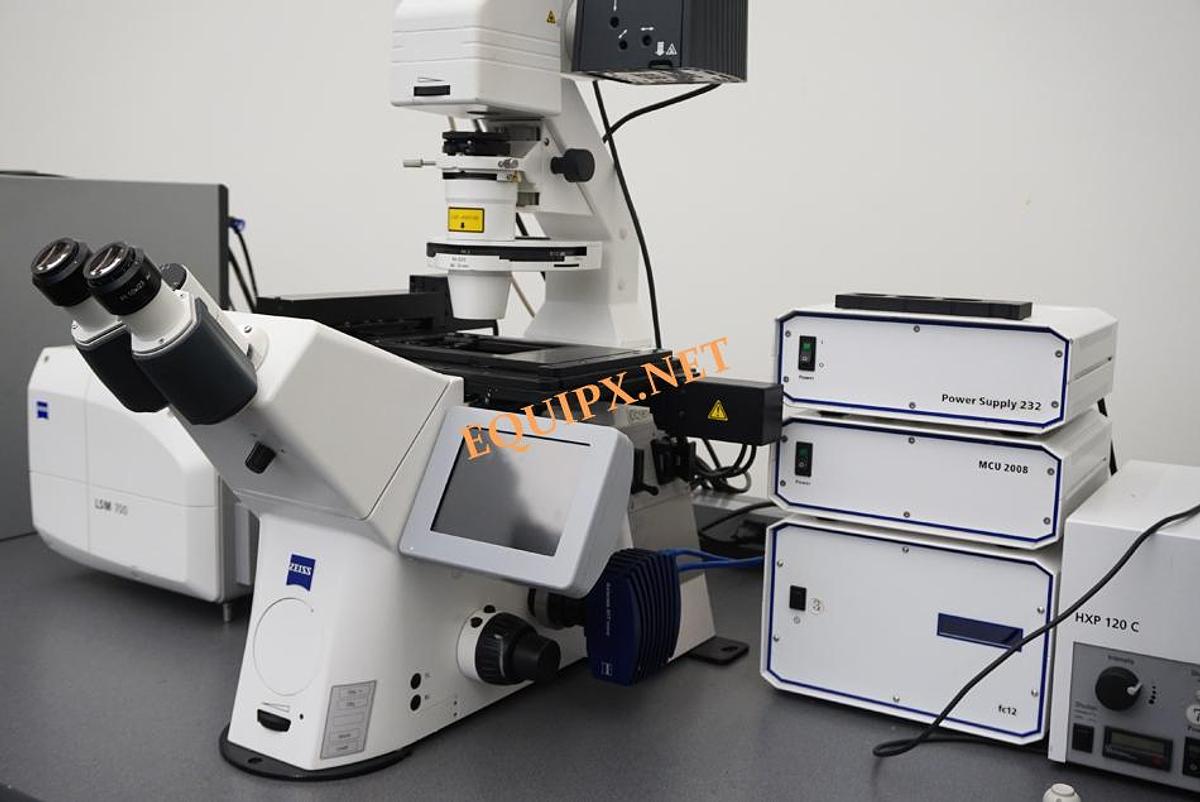

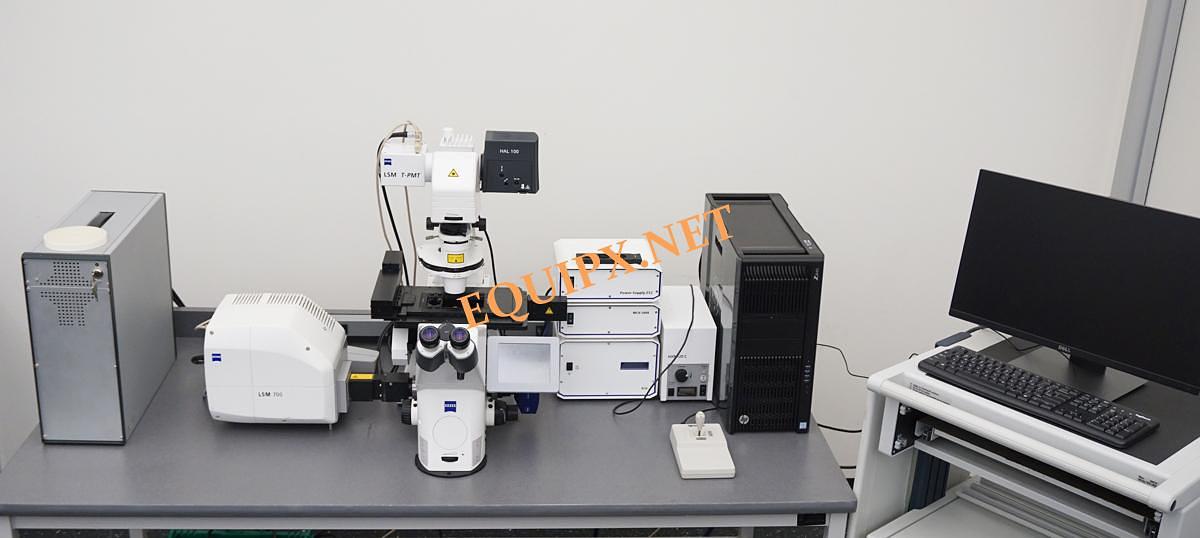

Zeiss LSM-700 Laser Confocal with Zeiss Axio Observer.Z1 microscope, Airyscan, and Definite Focus
Zeiss LSM-700 Laser Confocal with Zeiss Axio Observer.Z1 microscope, Airyscan, and Definite Focus
$79,500 (USD)
or
Call (408) 209-9278
Description
LSM-700 Laser scanning microscope fully functional with Zen software running on MS Windows 10 PC

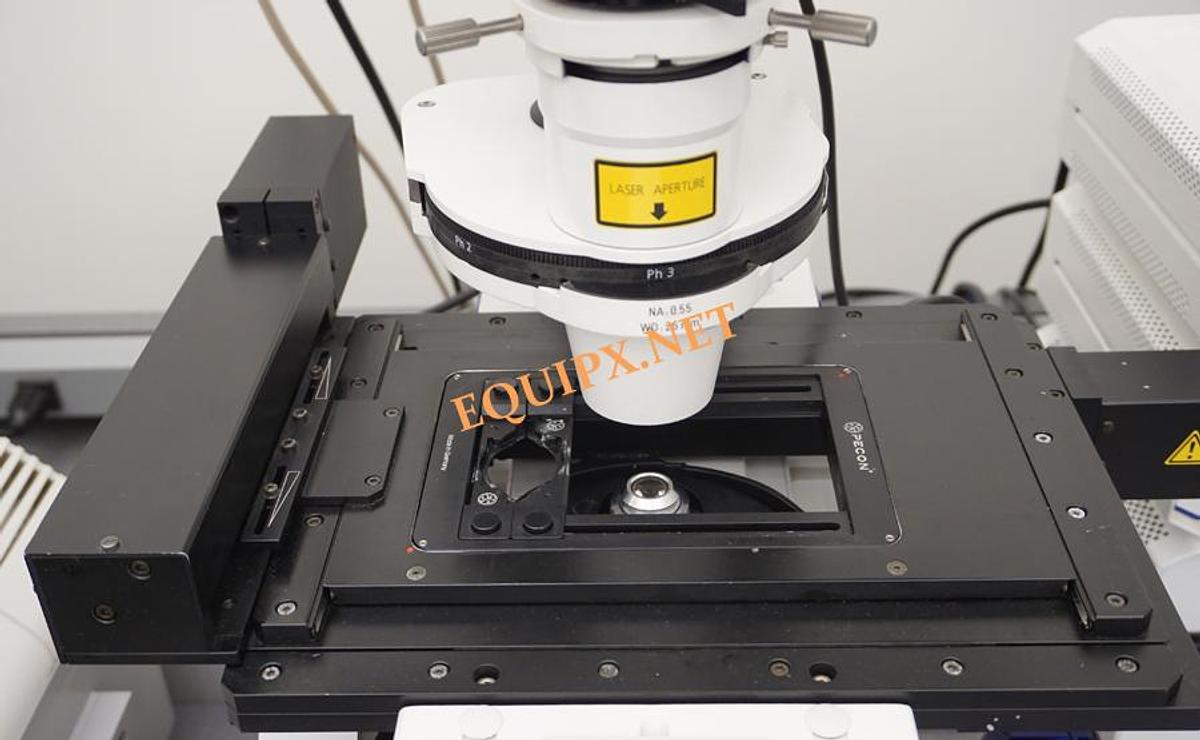

Zeiss Observer.Z1 Inverted Microscope with scanning stage
Simultaneous Airyscan transforms a diffraction-limited, point-scanning confocal microscope into a super-resolution microscope using a specialized 32-channel Airyscan detector
https://www.researchgate.net/figure/Airyscan-microscope-principle-and-configuration-a-scheme-of-confocal-and-Airyscan_fig1_318287874

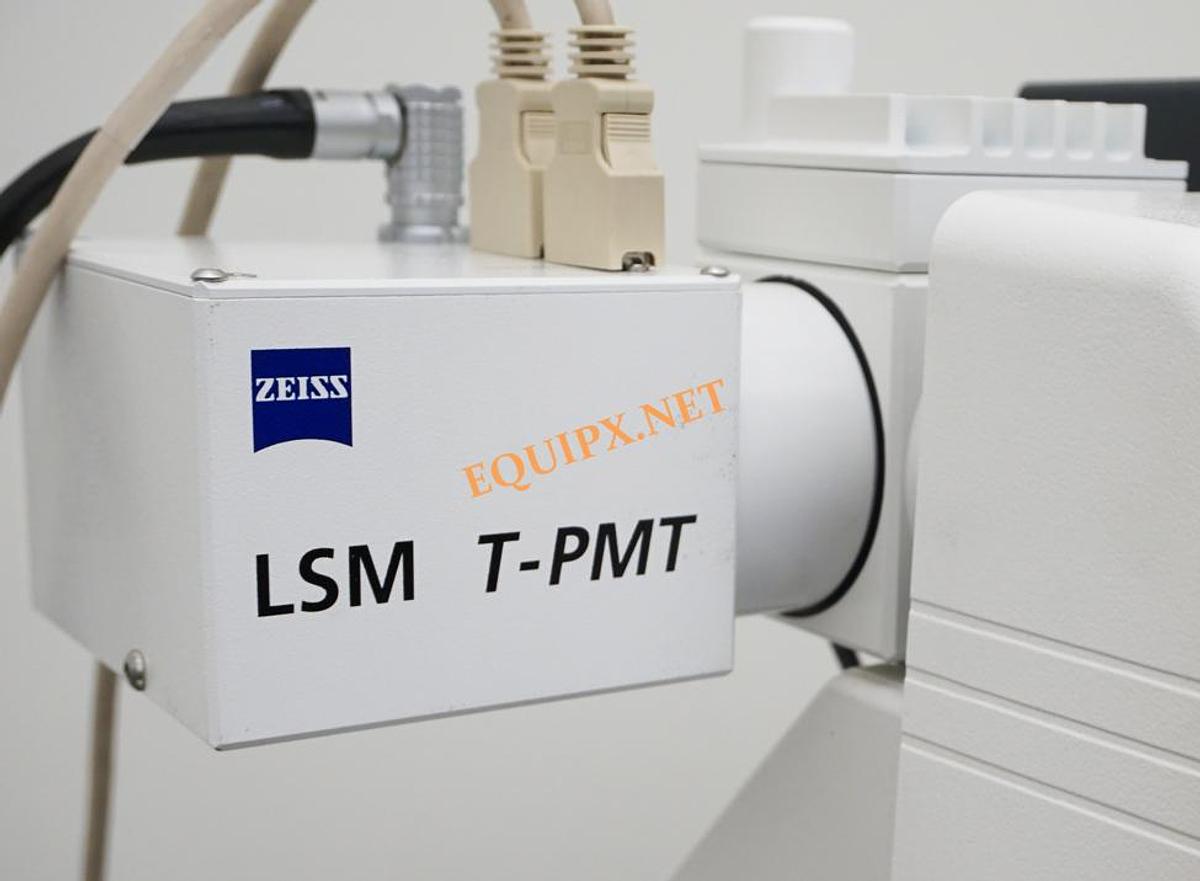

LSM T-PMT Transmitted Detection Module.
https://iss.com/media/ISS_T-PMT_DataSheet.pdf
Definite Focus (controls the Axio Observer. Z1's z-drive and corrects the position until the original grid area is again sharply depicted on the camera chip. This occurs continuously or at defined intervals
6-Position Motorized Nosepiece with the following Objectives: 40x/0.6 / 20x/0.4 / 10x/0.3 / 5x/0.15 / 2.5x/0.075
(2) PI 10x/23 Eyepieces
Modules Included:

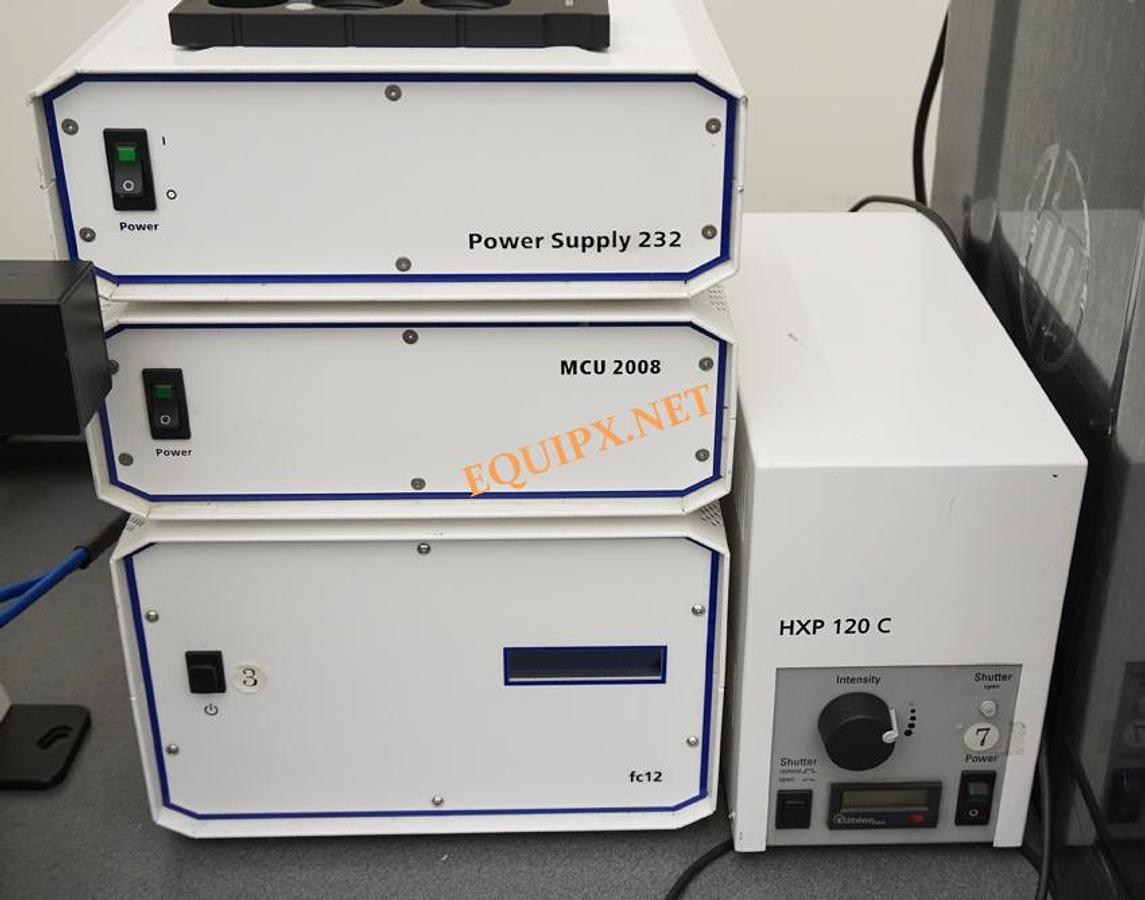

FC12 Focus Controller
MCU 2008 Two-Axis Stage Controller
232 Power Supply
HXP 120 C Rear Lighting Unit
HAL 100 Lamp, NA:0.55 WD:26mm
Motorized Condenser Turret
Zeiss Axiocam 807 Mono Color Camera
Thorlabs 3 x 2.5ft Optical Breadboard Table

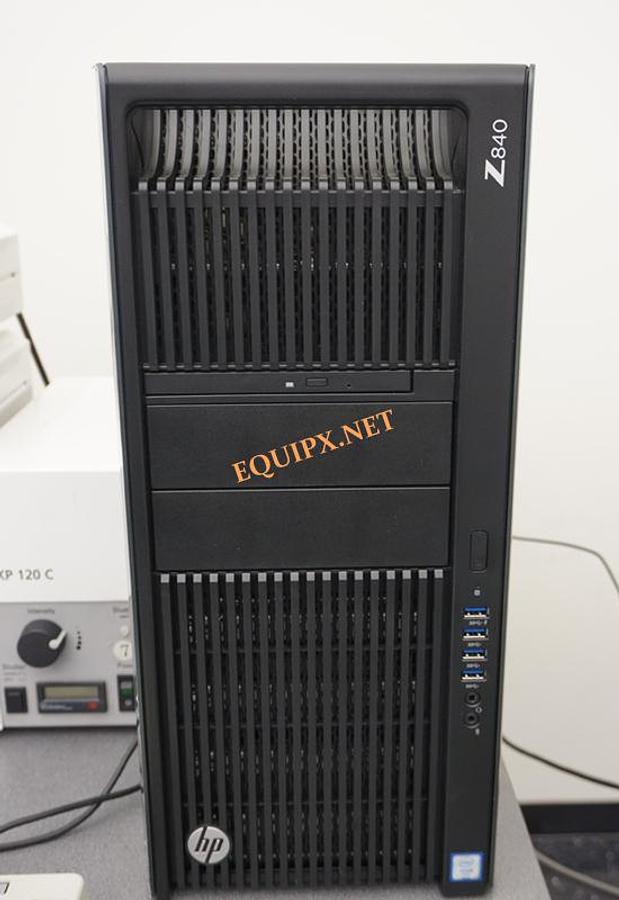

HP Z840 Tower Computer with Windows 10 and Zen 9.3 software
Zeiss Observer.Z1 Inverted Microscope with scanning stage
Simultaneous Airyscan transforms a diffraction-limited, point-scanning confocal microscope into a super-resolution microscope using a specialized 32-channel Airyscan detector
https://www.researchgate.net/figure/Airyscan-microscope-principle-and-configuration-a-scheme-of-confocal-and-Airyscan_fig1_318287874
LSM T-PMT Transmitted Detection Module.
https://iss.com/media/ISS_T-PMT_DataSheet.pdf
Definite Focus (controls the Axio Observer. Z1's z-drive and corrects the position until the original grid area is again sharply depicted on the camera chip. This occurs continuously or at defined intervals
6-Position Motorized Nosepiece with the following Objectives: 40x/0.6 / 20x/0.4 / 10x/0.3 / 5x/0.15 / 2.5x/0.075
(2) PI 10x/23 Eyepieces
Modules Included:
FC12 Focus Controller
MCU 2008 Two-Axis Stage Controller
232 Power Supply
HXP 120 C Rear Lighting Unit
HAL 100 Lamp, NA:0.55 WD:26mm
Motorized Condenser Turret
Zeiss Axiocam 807 Mono Color Camera
Thorlabs 3 x 2.5ft Optical Breadboard Table
HP Z840 Tower Computer with Windows 10 and Zen 9.3 software
Specifications
| Stock Number | 5156 |
| Sort | 0 |
