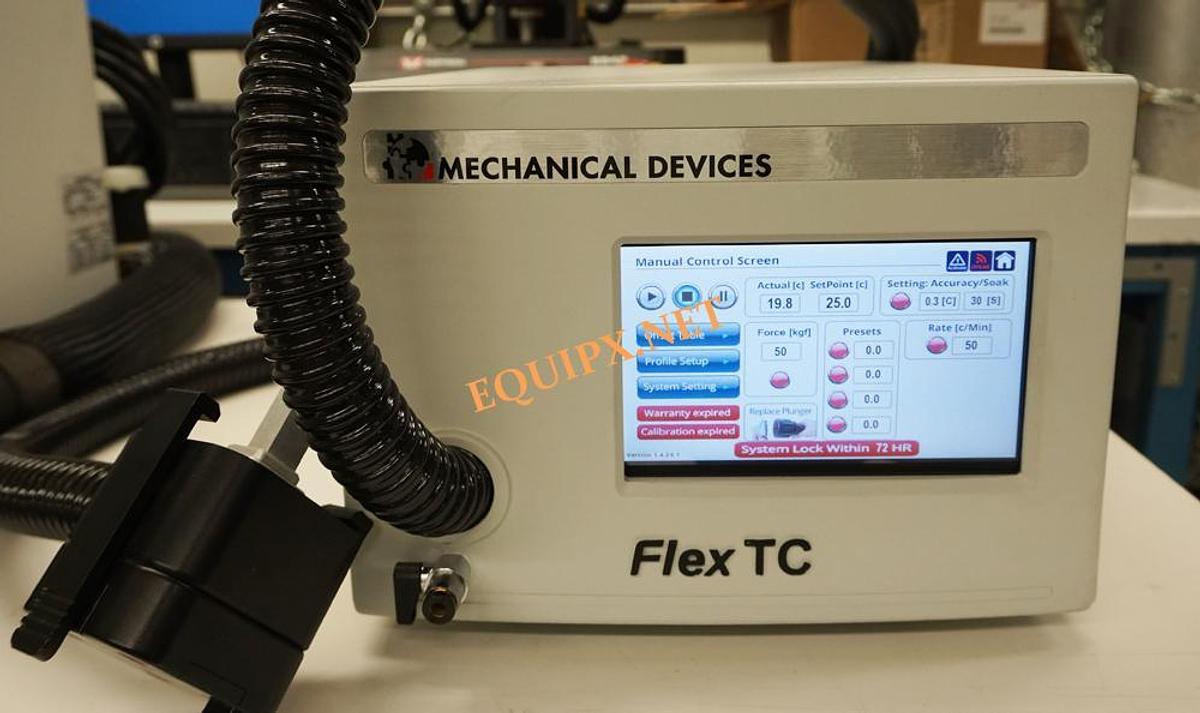

2018 Mechanical Devices FLEX-TC thermal forcing system model MDTC-485-1 Range -55C to 155C
2018 Mechanical Devices FLEX-TC thermal forcing system model MDTC-485-1 Range -55C to 155C
$7,950 (USD)
or
Call (408) 209-9278
Description
Tcase Temperature Range of - 55°C to +155°C* Temperature accuracy < 0.2°C Fluid Free Operation. Compact & Portable Design. Humidity and Frost Free Control. Suitable for testing soldered devices and devices in sockets. Data Logger and special curve profile. Environmentally Friendly Operation. ESD-SAFE 7" Full color touch screen menu driven panel display. Ramp/Soak/Cycle profile programming, save & upload. LAN interface. • XP/ Vista/Win 7 Operating system. Ultra Quiet Operation 40dBA MTBF 70,000hr Electrical 110VAC, 60Hz. . FLEX TC Brochure FLEX-TC user manual
Specifications
| Stock Number | 4391 |
| Year | 2018 |
| Serial Number | 18000205-1 |
| Availability | In Stock |
| Package Weight | 0 lbs |
| Package Width | 0 IN |
| Package Length | 0 IN |
| Package Height | 0 IN |
| Transition Rates | 50°C/Min max (not on the entire range). |
| System Enclosure (inch) | 16.5 (L) x 12.5 (W) x 8.5 (H) |
| Thermal head hose m/ (ft) | 2.0 meter (6.5 ft) |
