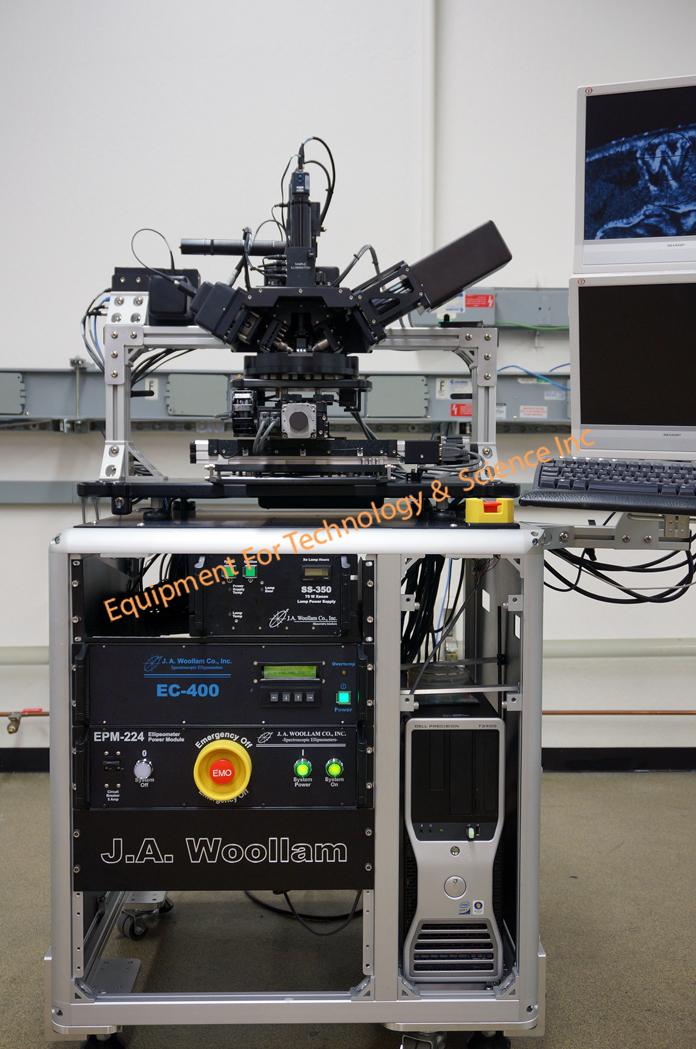

JA Woollam M-2000 Spectroscopic ellipsometer 193-1000nm

$74,900.00
$74,900.00
<br />
<b>Notice</b>:  Undefined index: alt in <b>/home/equiptec/public_html/addon-domains/equipx.net/themes/equip/template/product/products.php</b> on line <b>83</b><br />
JA Woollam M-2000  Spectroscopic ellipsometer 193-1000nm
<br />
<b>Notice</b>:  Undefined index: alt in <b>/home/equiptec/public_html/addon-domains/equipx.net/themes/equip/template/product/products.php</b> on line <b>88</b><br />
JA Woollam M-2000  Spectroscopic ellipsometer 193-1000nm
<br />
<b>Notice</b>:  Undefined index: alt in <b>/home/equiptec/public_html/addon-domains/equipx.net/themes/equip/template/product/products.php</b> on line <b>93</b><br />
JA Woollam M-2000  Spectroscopic ellipsometer 193-1000nm
<br />
<b>Notice</b>:  Undefined index: alt in <b>/home/equiptec/public_html/addon-domains/equipx.net/themes/equip/template/product/products.php</b> on line <b>93</b><br />
JA Woollam M-2000  Spectroscopic ellipsometer 193-1000nm
<br />
<b>Notice</b>:  Undefined index: alt in <b>/home/equiptec/public_html/addon-domains/equipx.net/themes/equip/template/product/products.php</b> on line <b>93</b><br />
JA Woollam M-2000  Spectroscopic ellipsometer 193-1000nm
<br />
<b>Notice</b>:  Undefined index: alt in <b>/home/equiptec/public_html/addon-domains/equipx.net/themes/equip/template/product/products.php</b> on line <b>93</b><br />
JA Woollam M-2000  Spectroscopic ellipsometer 193-1000nm

RF-3210

193-1000nm, 500 wavelengths

multiple incident angles of 45/60/75 degrees (3mm x 4.5mm spot)

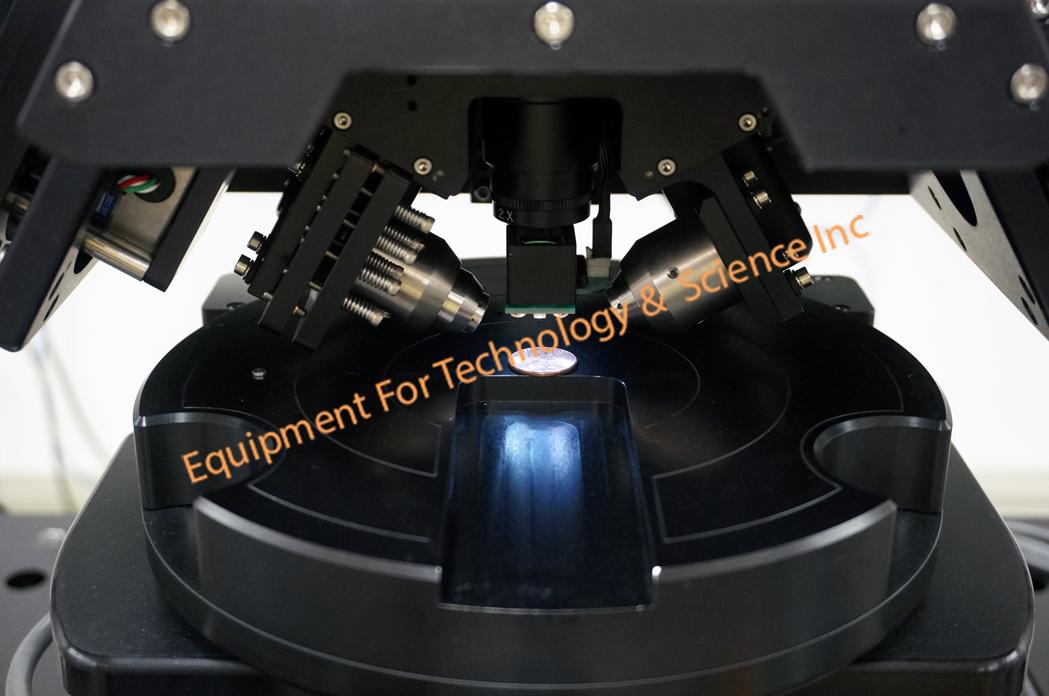

60 degree incident angle with microspot lens (25x50micron spot size)

FLS-350 75W Xenon source sn 1203066

EPM-222 power module sn 0508131

Watec WAT-902H2 video camera

fixed angle base with rotating compensator

motorized stage tip and tilt

200mm x 200mm XY mapping stage

PC with Windows 7 Enterprise OS

WVASE software

JA Woolam 3.818 software

Manufacturing date August 2005

See PDF link below for complete specifications

JAWoollamM2000.pdf

Last updated: 02/07/2018
