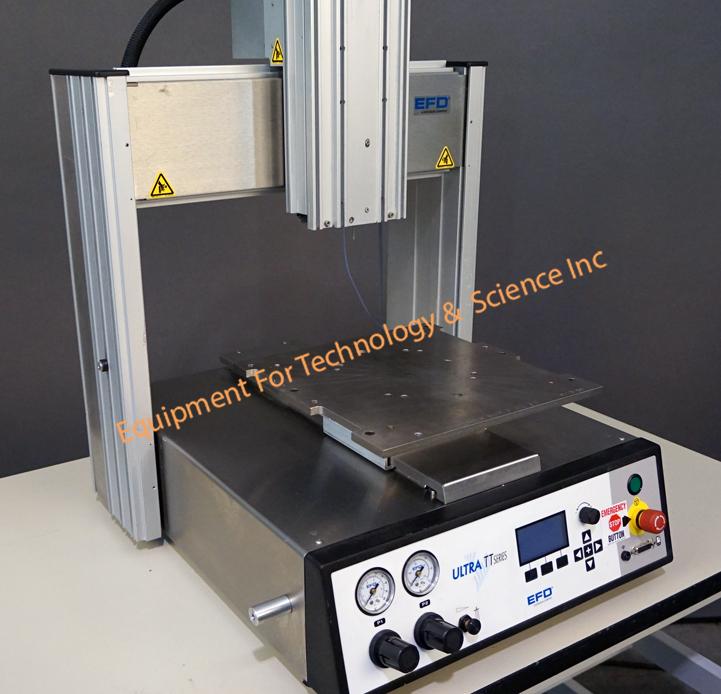

Nordson-EFD 325 Ultra TT Automated Dispensing System with dispensing needle valve

RF-2224

Ultra-TT 325 Key Features: Fully integrated positioning and dispensing functions.

Easy programming with the Palm handheld.

Height sensor for critical deposit control. Description:

The Ultra TT Automation Series combines precision dispensing and accurate positioning functions into one fully integrated, compact tabletop unit.

For manufacturers, the easy programming of the Ultra TT Series - combined with closed-loop servo controls and powerful drive moters for fast, accurate positioning - means higher productivity, greater process consistency, and less scrap and rework.

Ultra 325TT Specifications:

sn EF30037

Manuf 02/2004

Work Area: 325 (X) mm x 325 (Y) mm x 100 (Z) mm

Resolution: 10 µ

Repeatability: 25 µ

Max. Speed: 500 mm/sec

Acceleration: 0.25 g

Mechanical Configuration: H-Bridge De-coupled Axes Control Method:

Closed Loop DC Servo Drive System:

Cable Drive Footprint: 560 mm W x 670 mm D x 750 mm H (does not include accessories and the dispensing system)

Weight: 45 kg Tool Payload: 5 kg Work Piece

Payload: 10 kg Programming

Interface: Front Panel Buttons

Capacity: 100 Point Capacity: 10,000

Theta Axis: Upgradeable from the factory

General Purpose I/O: 16 inputs / 16 outputs Discrete I/O: 1 analog input / output, 4 inputs / 4 outputs,

2 solenoid drivers

External Communications: 1 RS232 / 1 Pal Height Sensor: Yes (Standard)

Tip Change Reset: Yes (Standard)

Software Compatibility: Palm OS 4.0 or higher

Current Consumption: 320 Watts

Input Voltage: 100 VAC ~ 240 VAC (±10%)

Dispense Controller: Integrated Number of Dispense Valves/Syringes: 1, 2 or 3

Patterns: Lines, Circles, Arcs, Continuous Paths, Potting and Dots Dot / Line Types: 10 Dots / 10 Lines per program

Front Panel Control: Offset, Jogging & Program Select

Last updated: 04/11/2018

Manufacturer: Nordson-EFD
Name/Model: 325 Ultra TT
Reference: R-4748
